This chapter is a tutorial for / demonstration of Spectral Clustering.
YouTube Lecture: check out my lectures on:
Spectral Clustering - I will get this recorded and updated ASAP.
Motivation for Spectral Cluster Analysis#
We need to learn and segment distinct populations to improve our prediction models.
Mixing distinct populations to train prediction models often reduces model accuracy.
Clustering is an inferential machine learning method to automate the segmentation of the dataset into separate groups, known as clusters and specified by an integer index.
Common methods for cluster analysis like k-means clustering are easy to apply but are only based on proximity in the feature space and do not integrate information about the pairwise relationships between the data samples; therefore, it is essential to add clustering methods, like spectral clustering, to our toolkit.
Always remember, the computer does not provide meaning nor description of the groups, that is our job!
Here’s a simple workflow demonstrating spectral clustering (for automated category assignment). This should help you get started with inferential methods to find patterns in your subsurface data sets.
Clustering Methods Covered#
I cover the following clustering methods,
k-Means clustering as a centroid-based clustering method with predetermined number of clusters
Density-based with DBSCAN, density-based spatial clustering of applications with noise, as a density-based clustering method without predetermined number of clusters
Spectral clustering as a hierarchical connectivity-based clustering method with predetermined number of clusters
Let’s cover essential prerequisites before we get started with spectral cluster analysis. Let’s start with the concept of inferential machine learning and then briefly discuss k-means clustering for comparison to spectral clustering.
Inferential Machine Learning#
There are no response features, \(y\), just predictor features,
Machine learns by mimicry a compact representation of the data
Captures patterns as feature projections, group assignments, neural network latent features, etc.
We focus on inference of the population, the natural system, instead of prediction of response features.
k-Means Clustering#
The K-means clustering approach is primarily applied as an unsupervised machine learning method for clustering, group assignment to unlabeled data, where dissimilarity within clustered groups is mini minimized. The loss function that is minimized is:
where \(i\) is the cluster index, \(\alpha\) is the data sample index, \(X\) is the data sample and \(\mu_i\) is the \(i\) cluster prototype, \(k\) is the total number of clusters, and \(|| X_m - \mu_m ||\) is the Euclidean distance from a sample to the cluster prototype in \(M\) dimensional space calculated as:
Here is a summary of import aspects for k-means clustering:
Prototype Method - represents the training data with number of synthetic cases in the features space. For K-means clustering we assign and iteratively update \(K\) prototypes.
Iterative Solution - the initial prototypes are assigned randomly in the feature space, the labels for each training sample are updated to the nearest prototype, then the prototypes are adjusted to the centroid of their assigned training data, repeat until there is no further update to the training data assignments.
Unsupervised Learning - the training data are not labeled and are assigned \(K\) labels based on their proximity to the prototypes in the feature space. The idea is that similar things, proximity in feature space, should belong to the same cluster group.
Feature Weighting - the procedure depends on the Euclidian distance between training samples and prototypes in feature space. Distance is treated as the ‘inverse’ of similarity. If the features have significantly different magnitudes, the feature(s) with the largest magnitudes and ranges will dominate the loss function and cluster groups will become anisotropic aligned orthogonal to the high range feature(s). While the common approach is to standardize / normalize the variables, by-feature weighting may be applied through unequal variances. Note, in this demonstration we normalize the features to range from 0.0 to 1.0.
Assumptions of k-means Clustering#
These are the assumptions that result in significant reduction in flexibility of k-means clustering:
The clusters are spherical, convex, and isotropic within the predictor feature space.
This is due to the model loss based on minimizes difference within clusters, this is accomplished through this simple spherical geometry in the predictor feature space.
There is equal variance for all features
this assumed with the between sample distance / dissimilarity calculation
The clusters have similar sizes and frequency (number of samples in the clusters)
larger cluster are divided to minimize the overall squared difference within clusters
clusters with few samples in feature space are overwhelmed!
Spectral Clustering#
Spectral Clustering, utilize the spectrum (eigenvalues) of a matrix that represents the pairwise relationships between the data samples.
The relationship between the data samples are represented by a graph, here’s some prerequisite graph terminology:
vertices are the data samples.
edges as the pairwise connections between data samples. These connections may be represented as 0 or 1 (off or on) known as adjacency or as a degree of connection (larger number is more connected) known as affinity.

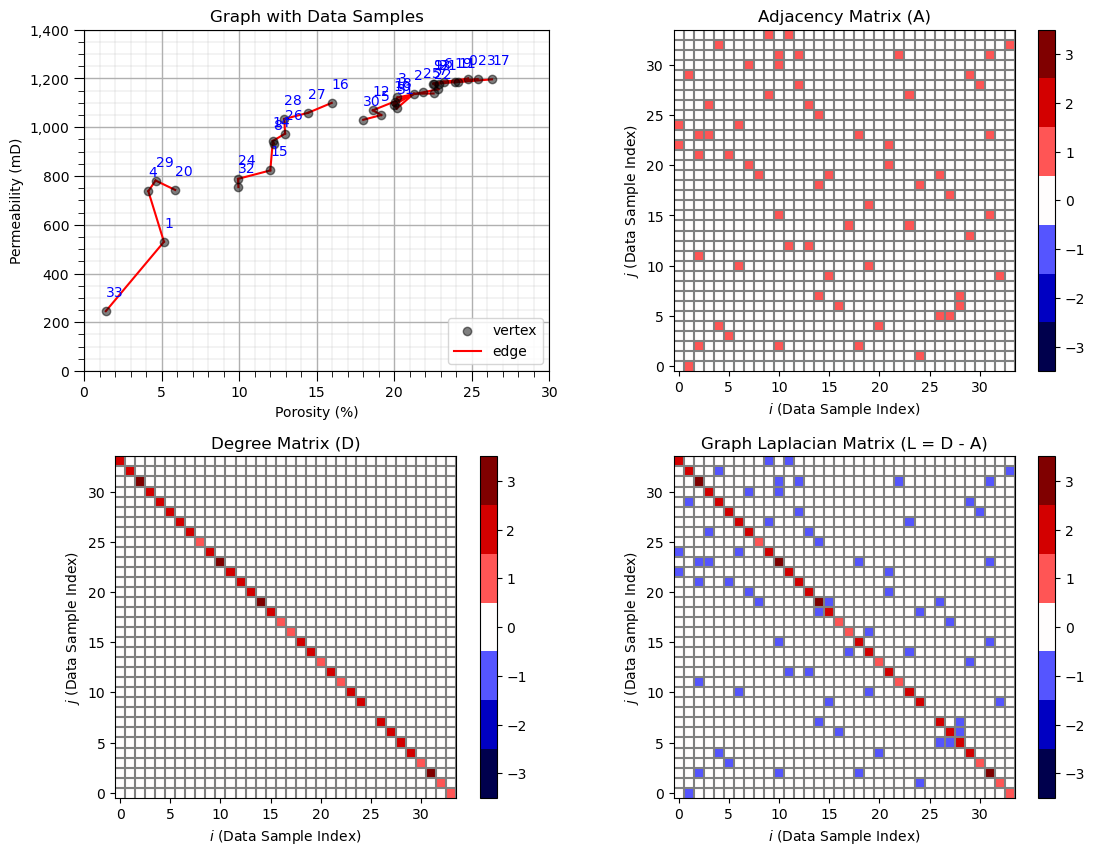

Given this graph we can calculate the adjacency matrix or affinity matrix (\(A\)) as the \(n \times n\) matrix with:
Note that the diagonal is 0 as the data samples are not considered to be connected to themselves.
For example, if we have 4 data samples and samples 1, 2 and 3 are connected to each other and sample 4 is not connected to any other samples, then the adjacency matrix is:
Now we need to account for the degree of connectivity for each sample, the number of connections. This is call the degree matrix (\(D\)).
We can calculate the degree from adjacency matrix as an marginalization over the rows or columns (doesn’t matter as the \(A\) is symmetric).
The off-diagonal values for the \(D\) matrix are set to zero. Here is the general structure:
For our 4 data samples the \(D\) matrix is:
Data samples 1, 2, and 3 are connected to 2 other samples (they are all connected to each other), but data sample 4 is not connected to any other samples.
Now we combine the adjacency (or affinity) matrix with degree matrix to form the Graph Laplacian Matrix (\(L\)) through this operation:
The resulting matrix has the general form:
Now if we return to our 4 data sample example we get the graph Laplacian (\(L\)) of:
We now have a single matrix that summarizes the graph, i.e., the pairwise connections between our data samples. But we need to summarize this such that we describe the most amount of information in the fewest dimensions.
this sounds like a similar problem as the one we solved with principal component analysis, so let’s use the same mathematics, eigenvalues and eigenvectors, to give us an order set of vectors that describe the most amount of the system and are independent of each other so they each describe unique aspects of the system.
we calculate the eigenvalues and eigenvectors of the graph Laplacian.
Let’s summarize the spectral clustering method:
determine the number of clusters (like k-means clustering)
the graph, pairwise data connections are compiled in the graph Laplacian matrix
dimensionality reduction of the graph Laplacian matrix is accomplished with eigenvalues, eigenvectors linear, orthogonal projection, rotation to best describe the variance of the system
k-means clustering is applied on the \(2, 3, \ldots, k\) eigenvectors. For example,
for \(k=2\) clusters we just assign the \(2^{nd}\) eigenvector to the data samples, \(1, \ldots, n\) and find the 2 k-means clusters in 1D with k-means clustering.
for \(k=3\) clusters we assign the \(2^{nd}\) and \(3^{rd}\) eigenvector to the data samples, \(1, \ldots, n\) and find the 3 k-means clusters in 2D with k-means clustering.
What are the advantages of spectral clustering?:
the ability to encode pairwise relationships, integrate expert knowledge.
eigenvalues provide useful information on the number of clusters, based on the degree of ‘cutting’ required to make k clusters
lower dimensional representation for the sample data pairwise relationships
the eigenvalues and eigenvectors can be interpreted
Let’s load a dataset and try this out. For more illustration and interpretation of the eigenvalues and eigenvectors from spectral clustering see my Interactive Spectral Clustering dashboard.
Load the Required Libraries#
The following code loads the required libraries. These should have been installed with Anaconda 3.
ignore_warnings = True # ignore warnings?
import numpy as np # ndarrays for gridded data
import pandas as pd # DataFrames for tabular data
import copy # for deep copies
import os # set working directory, run executables
import matplotlib.pyplot as plt # for plotting
from matplotlib.colors import ListedColormap # custom color maps
from matplotlib.ticker import (MultipleLocator,AutoMinorLocator,NullLocator,FuncFormatter) # control of axes ticks
from matplotlib.lines import Line2D # custom legend entry
import matplotlib.ticker as mtick # control tick label formatting
from sklearn.preprocessing import MinMaxScaler # min/max normalization
from sklearn.cluster import KMeans # k-means clustering
from sklearn.cluster import SpectralClustering # spectral clustering
plt.rc('axes', axisbelow=True) # plot all grids below the plot elements
if ignore_warnings == True:
import warnings
warnings.filterwarnings('ignore')
cmap = plt.cm.inferno # color map
seed = 42 # random number seed
If you get a package import error, you may have to first install some of these packages. This can usually be accomplished by opening up a command window on Windows and then typing ‘python -m pip install [package-name]’. More assistance is available with the respective package docs.
Set Up Custom Colormaps for Plotting#
Here we specify custom colormap with discretization for plotting.
continuous_cmap = plt.get_cmap('seismic')
num_levels = 7
discretized_cmap = continuous_cmap(np.linspace(0, 1, num_levels))
discrete_cmap = ListedColormap(discretized_cmap)
Declare Functions#
Convenience functions to add commas to numbers and major and minor gridlines to plots.
def comma_format(x, pos):
return f'{int(x):,}'
def add_grid():
plt.gca().grid(True, which='major',linewidth = 1.0); plt.gca().grid(True, which='minor',linewidth = 0.2) # add y grids
plt.gca().tick_params(which='major',length=7); plt.gca().tick_params(which='minor', length=4)
plt.gca().xaxis.set_minor_locator(AutoMinorLocator()); plt.gca().yaxis.set_minor_locator(AutoMinorLocator()) # turn on minor ticks
Set the Working Directory#
I always like to do this so I don’t lose files and to simplify subsequent read and writes (avoid including the full address each time).
#os.chdir("d:/PGE383") # set the working directory with the input data file
Loading Data#
Let’s load the provided multivariate, spatial datasets. It is a comma delimited file with:
you can select datasets 1-4 below.
We load it with the pandas ‘read_csv’ function into a data frame we called ‘df’ and then preview it to make sure it loaded correctly.
Python Tip: using functions from a package just type the label for the package that we declared at the beginning:
import pandas as pd
so we can access the pandas function ‘read_csv’ with the command:
pd.read_csv()
but read csv has required input parameters. The essential one is the name of the file. For our circumstance all the other default parameters are fine. If you want to see all the possible parameters for this function, just go to the docs here.
The docs are always helpful
There is often a lot of flexibility for Python functions, possible through using various inputs parameters
also, the program has an output, a pandas DataFrame loaded from the data. So we have to specficy the name / variable representing that new object.
df = pd.read_csv("nonlinear_facies_v1.csv")
Let’s run this command to load the data and then this command to extract a random subset of the data.
df = df.sample(frac=.30, random_state = 73073);
df = df.reset_index()
We do this to reduce the number of data for ease of visualization (hard to see if too many points on our plots) and in the case of spectral clustering so we can visualize the affinity, degree and graph Laplacian matrices.
dataset = 1 # select a dataset, 1 - 4
reduce_the_data = True; retain_fraction = 0.02 # reduce the number of samples to improve visualization and run time
yname = 'Facies' # available group label for checking
if dataset == 1:
Xname = ['Por','Perm']; Xunit = ['%','mD']; Xlabel = ['Porosity','Permeability']
Xlabelunit = [Xlabel[0] + ' (' + Xunit[0] + ')',Xlabel[1] + ' (' + Xunit[1] + ')']
Xmin = [0.0,0.0]; Xmax = [30.0,1400.0] # set minimums and maximums for visualization
df = pd.read_csv(r'https://raw.githubusercontent.com/GeostatsGuy/GeoDataSets/master/nonlinear_facies_v1.csv') # load our data table
elif dataset == 2:
Xname = ['AI','Por']; Xunit = [r'$kg/m2*10^3$','%']; Xlabel = ['Acoustic Impedance','Porosity']
Xlabelunit = [Xlabel[0] + ' (' + Xunit[0] + ')',Xlabel[1] + ' (' + Xunit[1] + ')']
Xmin = [0.0,0.0]; Xmax = [1200.0,30.0] # set minimums and maximums for visualization
df = pd.read_csv(r'https://raw.githubusercontent.com/GeostatsGuy/GeoDataSets/master/nonlinear_facies_v2.csv') # load our data table
elif dataset == 3:
Xname = ['AI','Por']; Xunit = [r'$kg/m2*10^3$','%']; Xlabel = ['Acoustic Impedance','Porosity']
Xlabelunit = [Xlabel[0] + ' (' + Xunit[0] + ')',Xlabel[1] + ' (' + Xunit[1] + ')']
Xmin = [0.0,0.0]; Xmax = [1200.0,30.0] # set minimums and maximums for visualization
df = pd.read_csv(r'https://raw.githubusercontent.com/GeostatsGuy/GeoDataSets/master/nonlinear_facies_v3.csv') # load our data table
elif dataset == 4:
Xname = ['AI','Por']; Xunit = [r'$kg/m2*10^3$','%']; Xlabel = ['Acoustic Impedance','Porosity']
Xlabelunit = [Xlabel[0] + ' (' + Xunit[0] + ')',Xlabel[1] + ' (' + Xunit[1] + ')']
Xmin = [0.0,0.0]; Xmax = [7000.0,30.0] # set minimums and maximums for visualization
df = pd.read_csv(r'https://raw.githubusercontent.com/GeostatsGuy/GeoDataSets/master/sample_data_Gaussian_mixture_v1.csv') # load our data table
nXname = ['n' + feature for feature in Xname] # labels, units and ranges for normalized features
nXunit = ['norm[' + unit + ']' for unit in Xunit]
nXlabel = ['Normalized ' + feature for feature in Xlabel]
nXlabelunit = [nXlabel[0] + ' (' + nXunit[0] + ')',nXlabel[1] + ' (' + nXunit[1] + ')']
nXmin = [0.0,0.0]; nXmax = [1.0,1.0]
if reduce_the_data == True:
df = df.sample(frac=retain_fraction, random_state = 73073); df = df.reset_index() # extract a fraction of the data
df = df[Xname + [yname]] # make a new DataFrame with only the features of interest
df.head()
| Por | Perm | Facies | |
|---|---|---|---|
| 0 | 24.751762 | 1199.611948 | 1 |
| 1 | 5.152299 | 530.125860 | 3 |
| 2 | 21.259112 | 1137.369924 | 1 |
| 3 | 20.203508 | 1122.143340 | 1 |
| 4 | 4.145138 | 737.744165 | 3 |
Summary Statistics for Tabular Data#
The table includes porosity (fraction) and acoustic impedance (\(\frac{kg}{m^3} \cdot \frac{m}{s} \cdot 10^3\)) that we will work with in the demonstration below.
There are a lot of efficient methods to calculate summary statistics from tabular data in DataFrames. The describe command provides count, mean, minimum, maximum, and quartiles all in a nice data table. We use transpose just to flip the table so that features are on the rows and the statistics are on the columns.
df.describe().transpose() # summary statistics
| count | mean | std | min | 25% | 50% | 75% | max | |
|---|---|---|---|---|---|---|---|---|
| Por | 34.0 | 16.880290 | 7.045527 | 1.405136 | 12.192611 | 19.562295 | 22.544500 | 26.296139 |
| Perm | 34.0 | 1007.408007 | 218.666676 | 245.633475 | 935.089796 | 1084.143851 | 1172.372323 | 1199.611948 |
| Facies | 34.0 | 1.529412 | 0.748141 | 1.000000 | 1.000000 | 1.000000 | 2.000000 | 3.000000 |

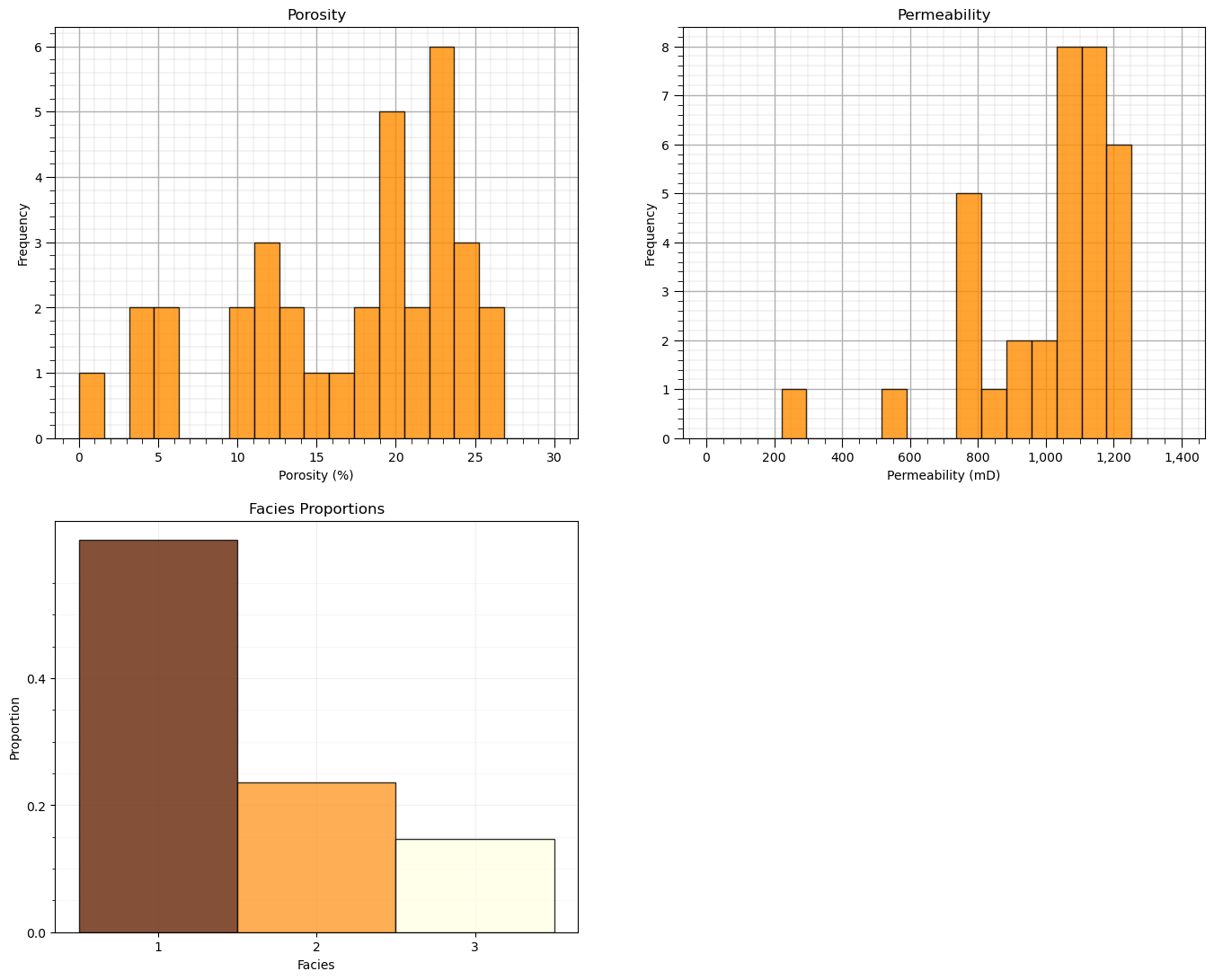

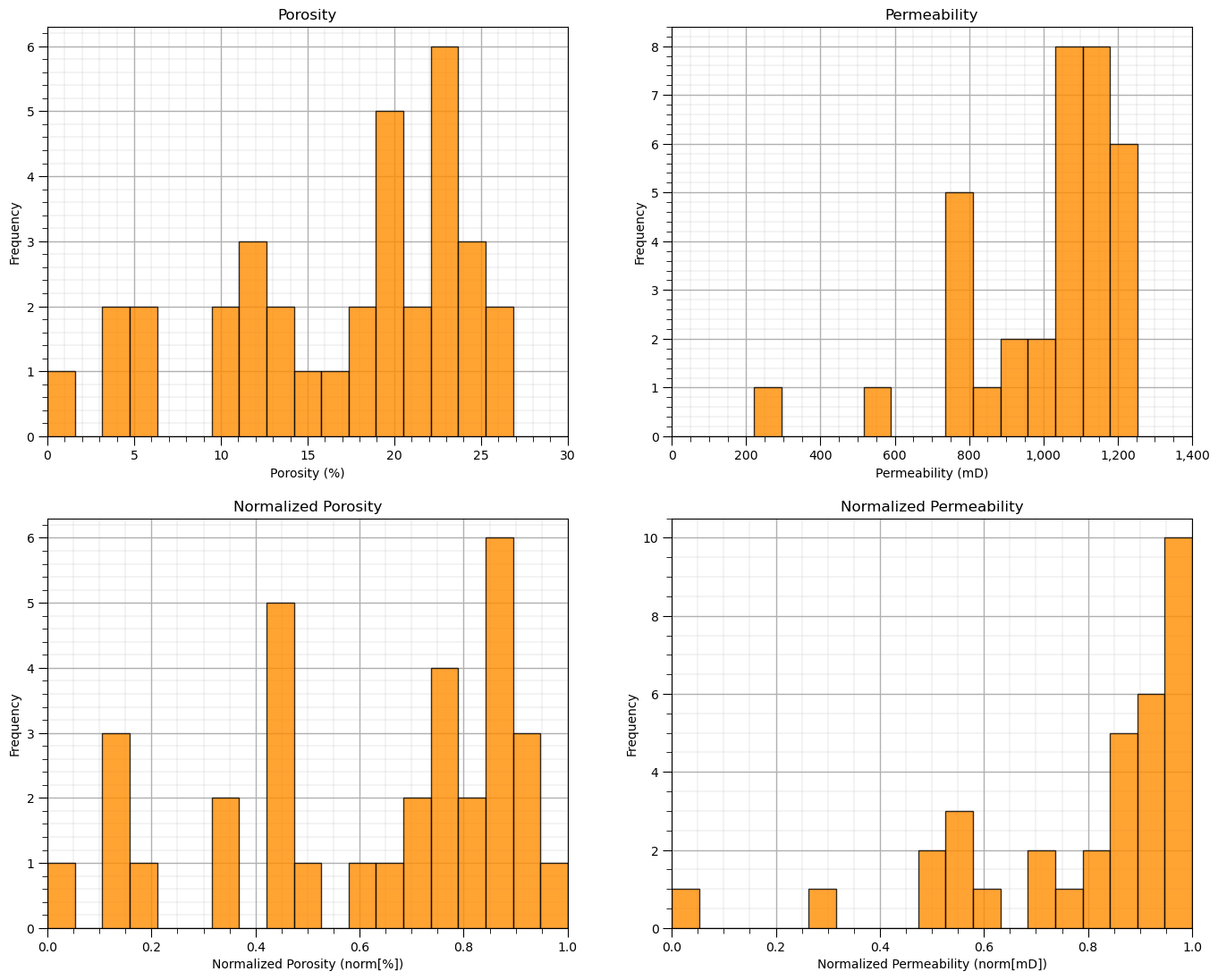

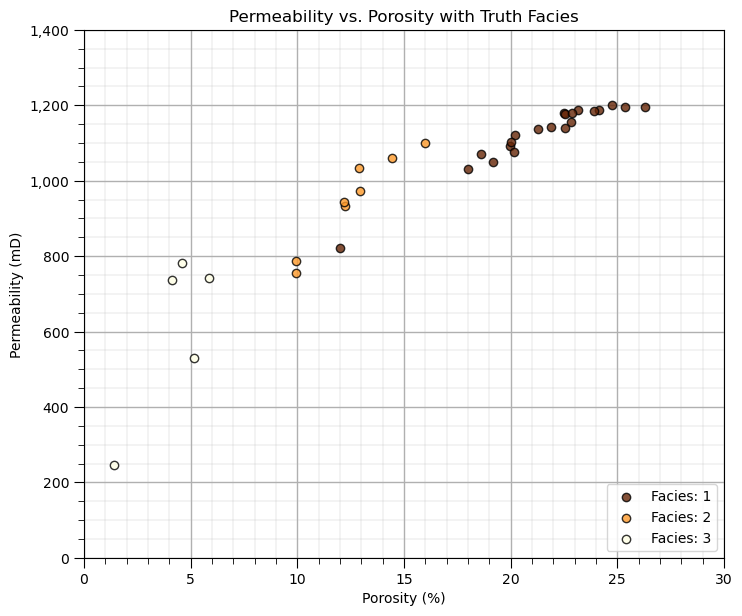

Let’s also check the proportion of facies.
we will not use these, but they indicate the proportion of samples in each cluster
plt.subplot(131) # histogram feature 1
plt.hist(df[Xname[0]],alpha=0.8,color="darkorange",edgecolor="black",bins=np.linspace(Xmin[0],Xmax[0],20),density = False)
plt.title(Xlabel[0])
plt.xlabel(Xlabelunit[0]); plt.ylabel("Frequency")
add_grid()
plt.subplot(132) # histogram feature 2
plt.hist(df[Xname[1]],alpha=0.8,color="darkorange",edgecolor="black",bins=np.linspace(Xmin[1],Xmax[1],20),density = False)
plt.title(Xlabel[1]); plt.xlabel(Xlabelunit[1]); plt.ylabel("Frequency")
plt.gca().xaxis.set_major_formatter(FuncFormatter(comma_format)); add_grid()
plt.subplot(133) # histogram truth label
plt.hist(df[yname],alpha=0.8,color="darkorange",edgecolor="black",bins=[0.5,1.5,2.5,3.5],label = ['Shale','SandShale','Sand'],range=[0.5,2.5],density = True)
plt.title('Facies Proportions')
plt.xlabel('Facies'); plt.ylabel("Proportion")
ax = plt.gca()
ax.set_xticks(np.arange(1.0, 3.1, 1)); ax.set_yticks(np.arange(0, 0.6, 0.2)); ax.set_yticks(np.arange(0, 0.6, 0.05), minor=True)
ax.grid(which='minor', alpha=0.1); ax.grid(which='major', alpha=0.2)
plt.subplots_adjust(left=0.0, bottom=0.0, right=2.4, top=0.8, wspace=0.2, hspace=0.2); plt.show()
Feature Normalization#
The two considered features are quite incompatible. They have dramatically different:
magnitudes / averages
variances / ranges
Since the difference in ranges between the features is arbitrary we need to remove this by transforming each of the features. We normalize each of the features to range from 0.0 (minimum) to 1.0 (maximum).
Note, with normalization there is no distribution shape change so we would typically check for issues like outliers before the transformation, for brevity this step is not included here given there are no outliers in the provided datasets.
Now we use these normalized feature values for the clustering workflows, e.g., for calculating the required distances distance between samples and prototypes in our workflow:
note, for each data sample we have original feature and transformed feature values; therefore, it is very easy to go back and forth without the need for backtransformation.
transform = MinMaxScaler(); # instantiate the normalization object
df['n' + Xname[0]], df['n' + Xname[1]] = transform.fit_transform(df.loc[:,Xname].values).T # normalize features
df.head(n = 3)
| Por | Perm | Facies | nPor | nPerm | |
|---|---|---|---|---|---|
| 0 | 24.751762 | 1199.611948 | 1 | 0.937954 | 1.000000 |
| 1 | 5.152299 | 530.125860 | 3 | 0.150543 | 0.298217 |
| 2 | 21.259112 | 1137.369924 | 1 | 0.797637 | 0.934755 |
Let’s confirm that our normalized porosity and acoustic impedance now range between 0 and 1.
df.describe().transpose() # check normalization via summary statistics
| count | mean | std | min | 25% | 50% | 75% | max | |
|---|---|---|---|---|---|---|---|---|
| Por | 34.0 | 16.880290 | 7.045527 | 1.405136 | 12.192611 | 19.562295 | 22.544500 | 26.296139 |
| Perm | 34.0 | 1007.408007 | 218.666676 | 245.633475 | 935.089796 | 1084.143851 | 1172.372323 | 1199.611948 |
| Facies | 34.0 | 1.529412 | 0.748141 | 1.000000 | 1.000000 | 1.000000 | 2.000000 | 3.000000 |
| nPor | 34.0 | 0.621717 | 0.283055 | 0.000000 | 0.433388 | 0.729467 | 0.849277 | 1.000000 |
| nPerm | 34.0 | 0.798524 | 0.229216 | 0.000000 | 0.722717 | 0.878962 | 0.971446 | 1.000000 |
and let’s compare the original and transformed histograms for the features.
plt.subplot(221) # original histograms
plt.hist(df[Xname[0]],alpha=0.8,color="darkorange",edgecolor="black",bins=np.linspace(Xmin[0],Xmax[0],20),density = False)
plt.title(Xlabel[0]); plt.xlabel(Xlabelunit[0]); plt.ylabel("Frequency"); plt.xlim([Xmin[0],Xmax[0]]); add_grid()
plt.subplot(222)
plt.hist(df[Xname[1]],alpha=0.8,color="darkorange",edgecolor="black",bins=np.linspace(Xmin[1],Xmax[1],20),density = False)
plt.title(Xlabel[1]); plt.xlabel(Xlabelunit[1]); plt.ylabel("Frequency"); plt.xlim([Xmin[1],Xmax[1]])
plt.gca().xaxis.set_major_formatter(FuncFormatter(comma_format)); add_grid()
plt.subplot(223) # normalized histograms
plt.hist(df[nXname[0]],alpha=0.8,color="darkorange",edgecolor="black",bins=np.linspace(nXmin[0],nXmax[0],20),density = False)
plt.title(nXlabel[0]); plt.xlabel(nXlabelunit[0]); plt.ylabel("Frequency"); add_grid(); plt.xlim([nXmin[0],nXmax[0]]);
plt.subplot(224)
plt.hist(df[nXname[1]],alpha=0.8,color="darkorange",edgecolor="black",bins=np.linspace(nXmin[1],nXmax[1],20),density = False)
plt.title(nXlabel[1]); plt.xlabel(nXlabelunit[1]); plt.ylabel("Frequency"); add_grid(); plt.xlim([nXmin[1],nXmax[1]]);
plt.subplots_adjust(left=0.0, bottom=0.0, right=1.6, top=1.6, wspace=0.2, hspace=0.3); plt.show()
Quick Peek at Available Labels for Educational Purposes#
I know this is cheating, but to calibrate our eye’s and to check the natural clusters in our dataset, let’s cheat and look at the features scatter plotted colored by the facies labels.
for this demonstration workflow this is our inaccessible truth model, we are using this as only a teaching tool
after this we will leave these labels out and attempt to automate their assignment with cluster analysis
facies_list = np.unique(df[yname]) # get the facies list from loaded data
min_facies = min(facies_list); max_facies = max(facies_list)
for ifacies in facies_list: # plot the labeled data
plt.scatter(df[df[yname] == ifacies][Xname[0]],df[df[yname] == ifacies][Xname[1]],
color = plt.cm.YlOrBr_r((ifacies-min_facies)/(max_facies-min_facies)),edgecolor='black',alpha = 0.8,
vmin = min_facies, vmax = max_facies,label = 'Facies: ' + str(ifacies))
plt.xlabel(Xlabelunit[0]); plt.ylabel(Xlabelunit[1]); plt.title(Xlabel[1] + ' vs. ' + Xlabel[0] + ' with Truth ' + yname); add_grid()
plt.xlim([Xmin[0],Xmax[0]]); plt.ylim([Xmin[1],Xmax[1]])
plt.gca().yaxis.set_major_formatter(FuncFormatter(comma_format)); plt.legend()
plt.subplots_adjust(left=0.0, bottom=0.0, right=0.8, top=0.8, wspace=0.2, hspace=0.2)
Visualization of Training Data#
In this exercise, we want to use K-means clustering provide facies based on porosity and brittleness features.

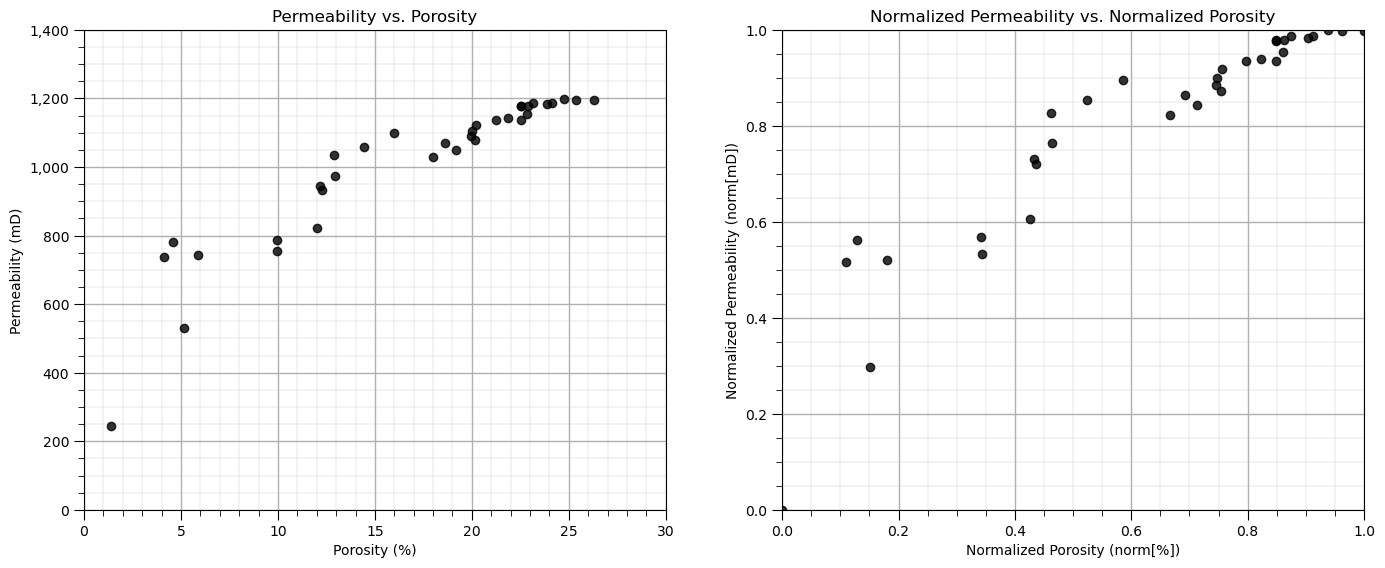

Let’s start by looking at the scatterplot of our training data features, porosity and brittleness.
We will look at the data in original units and normalized units through this entire exercise.
plt.subplot(121) # scatter plot our training data
plt.scatter(df[Xname[0]],df[Xname[1]], c="black", alpha = 0.8, linewidths=1.0, edgecolors="black")
plt.title(Xlabel[1] + ' vs. ' + Xlabel[0]); plt.xlabel(Xlabelunit[0]); plt.ylabel(Xlabelunit[1])
plt.gca().yaxis.set_major_formatter(FuncFormatter(comma_format));
plt.xlim(Xmin[0],Xmax[0]); plt.ylim(Xmin[1],Xmax[1]); add_grid()
plt.subplot(122)
plt.scatter(df[nXname[0]],df[nXname[1]], c="black", alpha = 0.8, linewidths=1.0, edgecolors="black")
plt.title(nXlabel[1] + ' vs. ' + nXlabel[0]); plt.xlabel(nXlabelunit[0]); plt.ylabel(nXlabelunit[1])
plt.xlim(nXmin[0],nXmax[0]); plt.ylim(nXmin[1],nXmax[1]); add_grid()
plt.subplots_adjust(left=0.0, bottom=0.0, right=2.0, top=1.0, wspace=0.2, hspace=0.2)
Calculate Adjacency, Degree and Graph Laplacian Matrices#
Our first step is to calculate the affinity matrix. While kernel and nearest neighbour approaches are common, these methods only integrate proximity information, this step could include integration of various information sources.
to demonstrate this here we will assign adjacency by-hand. Let’s specify data samples that are connected.
once again, in practice we would use additional information to build the adjacency or affinity matrix.

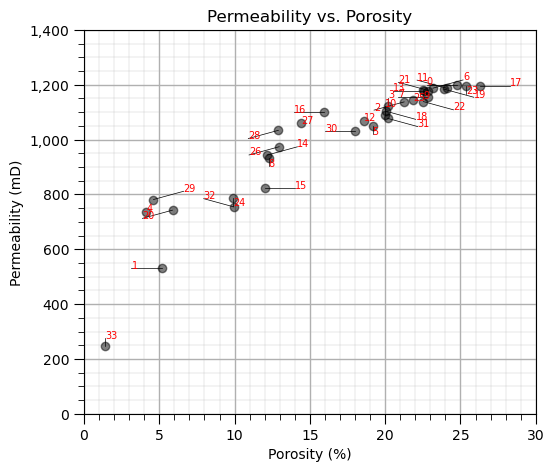

For demonstration purposes, let’s look at the data samples in feature space with indices plotted to assign some connections.
plt.subplot(131) # plot the data unlabeled
np.random.seed(15) # I found a seed with pretty good random "jittered" labels
plt.scatter(df[Xname[0]], df[Xname[1]],c='black',alpha=0.5,edgecolor='k',cmap = cmap)
plt.xlabel(Xlabelunit[0]); plt.ylabel(Xlabelunit[1]); plt.title(Xlabel[1] + ' vs. ' + Xlabel[0]); add_grid()
plt.gca().yaxis.set_major_formatter(FuncFormatter(comma_format))
plt.xlim([Xmin[0],Xmax[0]]); plt.ylim([Xmin[1],Xmax[1]])
for i in range(0,len(df)):
dx = dy = np.random.choice([-1,0,1])*2; dy = np.random.choice([-1,0,1])*30
x0 = df[Xname[0]][i]; x1 = df[Xname[1]][i]
xa0 = df[Xname[0]][i]+dx; xa1 = df[Xname[1]][i]+dy
plt.annotate(i,[xa0,xa1],size=7,zorder=20,color='red')
plt.plot([x0,xa0],[x1,xa1],color='black',lw=0.5)
plt.subplots_adjust(left=0.0, bottom=0.0, right=2.4, top=0.8, wspace=0.2, hspace=0.2); plt.show()
Now we specify the connected data pairs by index and build the adjacency, degree and graph Laplacian matrices.
in practice we only build the adjacency (or affinity) matrix. The others matrices are calculated automatically by the spectral clustering function.
connect = [(33,1),(1,4),(4,29),(29,20),(32,24),(24,15),(14,15),(14,8),(14,26),(26,28),(28,27),(27,16)]
connect = connect + [(30,5),(5,12),(12,2),(2,10),(10,18),(18,31),(31,10),(10,3),(3,7),(7,13),(13,21),(21,11)]
connect = connect + [(11,0),(0,9),(9,6),(6,23),(23,19),(19,17),(22,2),(31,2)]
A = np.zeros((len(df),len(df))); D = np.zeros((len(df),len(df))) # declare the adjacency and degree matrices
for icon in range(0,len(connect)): # make adjacency matrix
A[connect[icon][0],connect[icon][1]] = 1.0
A[connect[icon][1],connect[icon][0]] = 1.0
degrees = np.sum(A,axis=0) # make degree matrix
for i in range(0,len(df)):
D[i,i] = degrees[i]
L = D - A # calculate graph Laplacian matrix
plt.subplot(221) # plot the data with graph vertices
plt.scatter(df[Xname[0]], df[Xname[1]],c='black',alpha=0.5,edgecolor='k',cmap = cmap,zorder=5,label='vertex')
plt.xlabel(Xlabelunit[0]); plt.ylabel(Xlabelunit[1]); plt.title('Graph with Data Samples'); add_grid()
plt.gca().yaxis.set_major_formatter(FuncFormatter(comma_format))
plt.xlim([Xmin[0],Xmax[0]]); plt.ylim([Xmin[1],Xmax[1]])
for i in range(0,len(df)):
x0 = df[Xname[0]][i]; x1 = df[Xname[1]][i]+60
plt.annotate(i,[x0,x1],color='blue',zorder=20)
for icon in range(0,len(connect)):
i,j = connect[icon]
plt.plot([df[Xname[0]][i],df[Xname[0]][j]],[df[Xname[1]][i],df[Xname[1]][j]],color='red',zorder=1)
line = Line2D([0], [0], label='edge', color='red')
colors = ['#FFFFFF','#000000'] # Black and white
binary_cmap = ListedColormap(colors)
handles, labels = plt.gca().get_legend_handles_labels()
handles.extend([line])
plt.legend(handles=handles,loc='lower right')
plt.subplot(222) # plot adjacency matrix
plt.imshow(A,extent=[-0.5,len(df)-1+0.5,-0.5,len(df)-1+0.5],cmap = discrete_cmap,vmin=-3.5,vmax=3.5)
for icon in range(0,len(df)+1):
plt.plot([icon+0.5,icon+0.5],[-0.5,len(df)-1+0.5],color='grey')
plt.plot([-0.5,len(df)-1+0.5],[icon+0.5,icon+0.5],color='grey')
plt.xlim([-0.5,len(df)-1+0.5]); plt.ylim([-0.5,len(df)-1+0.5]);
plt.title('Adjacency Matrix (A)'); plt.xlabel('$i$ (Data Sample Index)'); plt.ylabel('$j$ (Data Sample Index)');
cbar = plt.colorbar()
plt.subplot(223) # plot the degree matrix
plt.imshow(D,extent=[-0.5,len(df)-1+0.5,-0.5,len(df)-1+0.5],cmap = discrete_cmap,vmin=-3.5,vmax=3.5)
for icon in range(0,len(df)+1):
plt.plot([icon+0.5,icon+0.5],[-0.5,len(df)-1+0.5],color='grey')
plt.plot([-0.5,len(df)-1+0.5],[icon+0.5,icon+0.5],color='grey')
plt.xlim([-0.5,len(df)-1+0.5]); plt.ylim([-0.5,len(df)-1+0.5]);
plt.title('Degree Matrix (D)'); plt.xlabel('$i$ (Data Sample Index)'); plt.ylabel('$j$ (Data Sample Index)');
cbar = plt.colorbar()
plt.subplot(224) # plot the graph Laplacian matrix
plt.imshow(L,extent=[-0.5,len(df)-1+0.5,-0.5,len(df)-1+0.5],cmap = discrete_cmap,vmin=-3.5,vmax=3.5)
for icon in range(0,len(df)+1):
plt.plot([icon+0.5,icon+0.5],[-0.5,len(df)-1+0.5],color='grey')
plt.plot([-0.5,len(df)-1+0.5],[icon+0.5,icon+0.5],color='grey')
plt.xlim([-0.5,len(df)-1+0.5]); plt.ylim([-0.5,len(df)-1+0.5]);
plt.title('Graph Laplacian Matrix (L = D - A)'); plt.xlabel('$i$ (Data Sample Index)'); plt.ylabel('$j$ (Data Sample Index)');
cbar = plt.colorbar()
plt.subplots_adjust(left=0.0, bottom=0.0, right=1.6, top=1.6, wspace=0.2, hspace=0.25); plt.show()

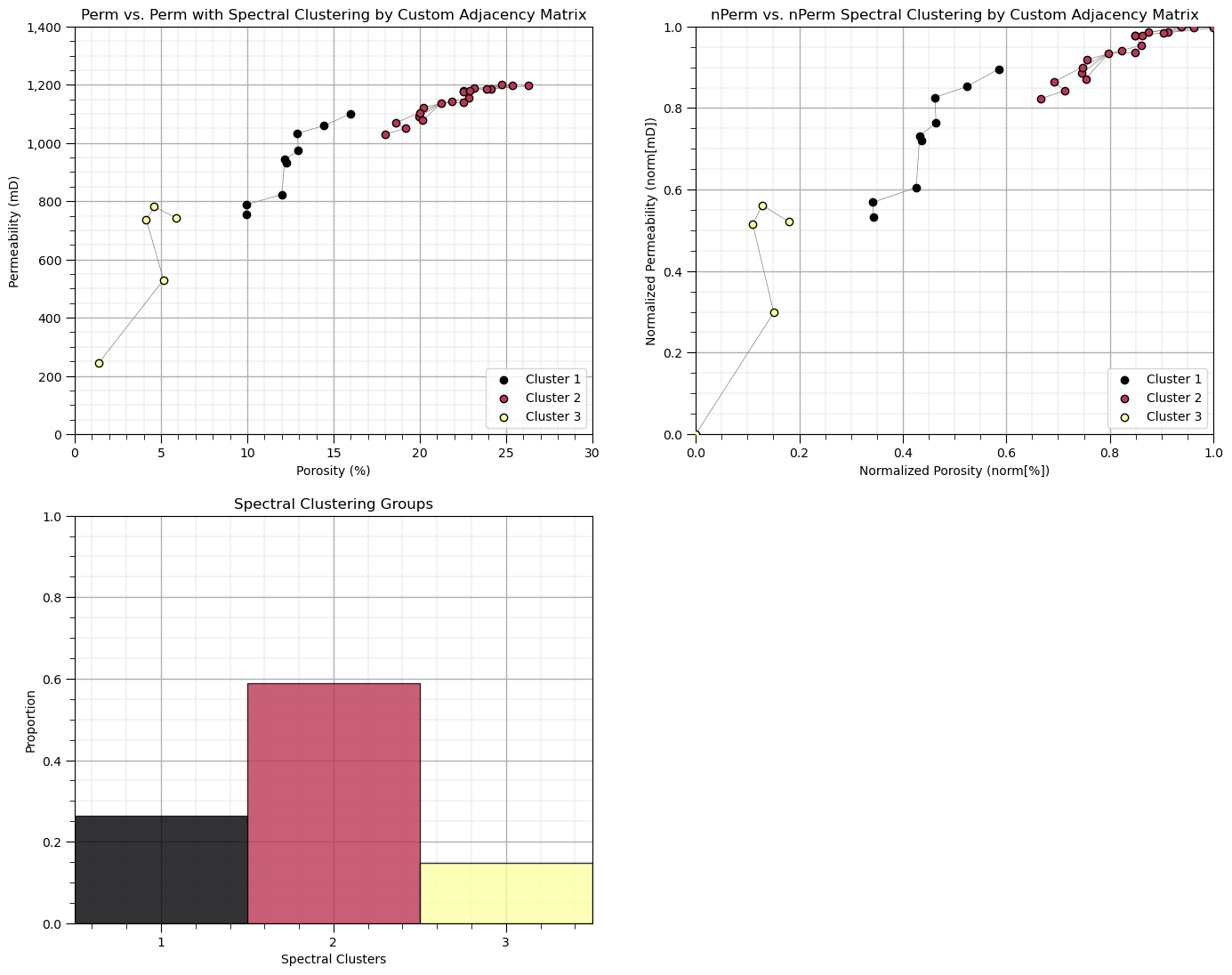

Spectral Clustering with Custom Adjacency Matrix#
Now let’s run spectral clustering with our adjacency matrix.
to do this we set the parameter ‘affinity’ as precomputed and then train on the adjacency matrix instead of the data.
K = 3
spectral = SpectralClustering(n_clusters=K,assign_labels="kmeans",affinity='precomputed', random_state=seed).fit(A)
df['Spectral'] = spectral.labels_ + 1
cluster_list = np.unique(df['Spectral']); min_cluster = min(cluster_list); max_cluster = max(cluster_list)
cmap = plt.cm.inferno
plt.subplot(131) # plot the clusters and graph
for k in range(1,K+1):
plt.scatter(df[df['Spectral']==k][Xname[0]], df[df['Spectral']==k][Xname[1]],c=cmap((k-1)/(K-1)),alpha = 1.0,
linewidths=1.0, edgecolors="black", cmap = cmap,label = 'Cluster ' + str(k),vmin=0,vmax=K,zorder=10)
plt.title(Xname[1] + ' vs. ' + Xname[1] + ' with Spectral Clustering by Custom Adjacency Matrix'); plt.xlabel(Xlabelunit[0])
plt.ylabel(Xlabelunit[1]); plt.xlim([Xmin[0],Xmax[0]]); plt.ylim([Xmin[1],Xmax[1]]); add_grid()
plt.gca().yaxis.set_major_formatter(FuncFormatter(comma_format))
for icon in range(0,len(connect)):
i,j = connect[icon]
plt.plot([df[Xname[0]][i],df[Xname[0]][j]],[df[Xname[1]][i],df[Xname[1]][j]],color='grey',lw=0.5,zorder=1)
plt.legend(loc='lower right')
plt.subplot(132) # plot the clusters and graph
for k in range(1,K+1):
plt.scatter(df[df['Spectral']==k][nXname[0]], df[df['Spectral']==k][nXname[1]],c=cmap((k-1)/(K-1)),alpha = 1.0,
linewidths=1.0, edgecolors="black", cmap = cmap,label = 'Cluster ' + str(k),vmin=0,vmax=K,zorder=10)
plt.title(nXname[1] + ' vs. ' + nXname[1] + ' Spectral Clustering by Custom Adjacency Matrix'); plt.xlabel(nXlabelunit[0])
plt.ylabel(nXlabelunit[1]); plt.xlim([nXmin[0],nXmax[0]]); plt.ylim([nXmin[1],nXmax[1]]); add_grid()
for icon in range(0,len(connect)):
i,j = connect[icon]
plt.plot([df[nXname[0]][i],df[nXname[0]][j]],[df[nXname[1]][i],df[nXname[1]][j]],color='grey',lw=0.5,zorder=1)
plt.legend(loc='lower right')
plt.subplot(133) # plot the cluster groups histograms
N, bins, patches = plt.hist(df['Spectral'],alpha=0.8,edgecolor="black",range=[min_cluster-0.5,max_cluster-0.5],
bins=np.insert(np.linspace(min_cluster,max_cluster,len(cluster_list))+0.5,0,min_cluster-0.5),density = True)
for i in range(0,len(cluster_list)):
patches[i].set_facecolor(cmap((cluster_list[i]-min_cluster)/(max_cluster-min_cluster)));
ax = plt.gca(); ax.set_xticks(cluster_list); plt.xlabel('Spectral Clusters'); plt.ylabel('Proportion'); plt.title('Spectral Clustering Groups')
plt.xlim([0.5,K+0.5]); plt.ylim([0,1]); add_grid()
plt.subplots_adjust(left=0.0, bottom=0.0, right=3.0, top=1.1, wspace=0.2, hspace=0.2)
Some observations:
unsurprisingly the spectral groups are aligned with the connected groups that we specified.

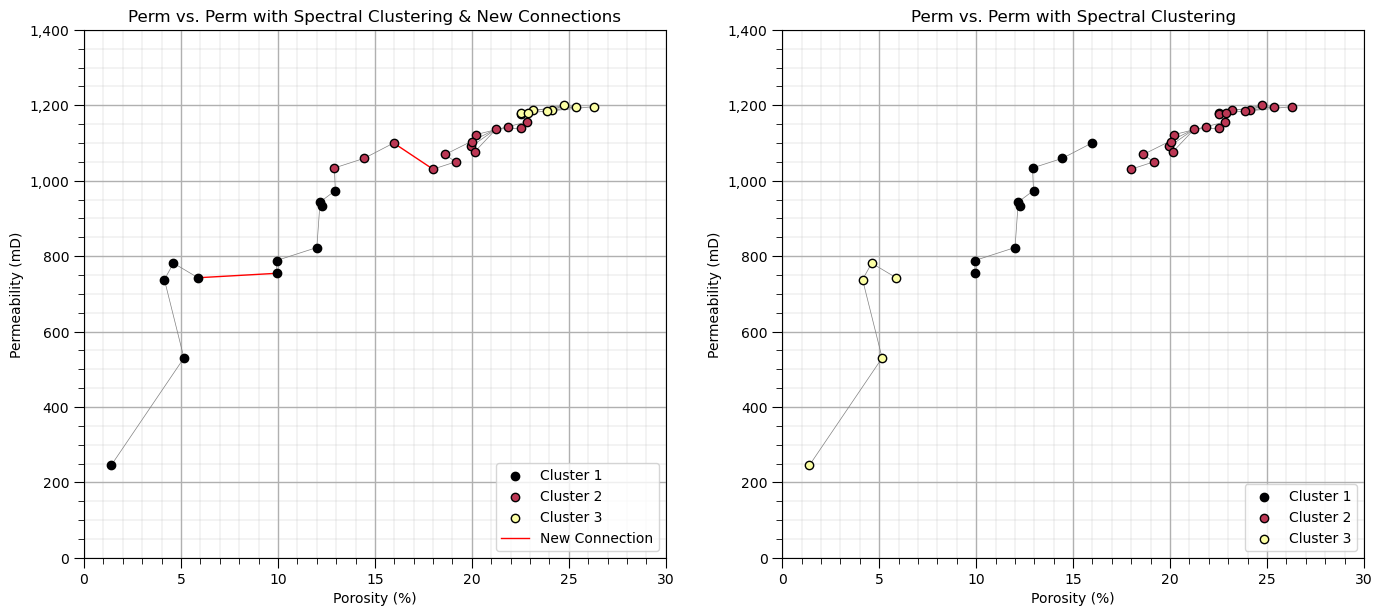

Let’s try something else, we add connections between the 3 group with 2 new vertices.
new_vertices = [(20,32),(16,30)] # add new vertices
connect2 = connect + new_vertices
A2 = np.zeros((len(df),len(df))) # declare the adjacency and degree matrices
for icon in range(0,len(connect2)):
A2[connect2[icon][0],connect2[icon][1]] = 1.0
A2[connect2[icon][1],connect2[icon][0]] = 1.0
K = 3 # spectral clustering with the new graph
spectral2 = SpectralClustering(n_clusters=K,assign_labels="kmeans",affinity='precomputed', random_state=seed).fit(A2)
df['Spectral2'] = spectral2.labels_ + 1
cluster_list = np.unique(df['Spectral2']); min_cluster = min(cluster_list); max_cluster = max(cluster_list)
cmap = plt.cm.inferno
plt.subplot(121) # plot the clusters and graph
for k in range(1,K+1):
plt.scatter(df[df['Spectral2']==k][Xname[0]], df[df['Spectral2']==k][Xname[1]],c=cmap((k-1)/(K-1)),alpha = 1.0,
linewidths=1.0, edgecolors="black", cmap = cmap,label = 'Cluster ' + str(k),vmin=0,vmax=K,zorder=10)
plt.title(Xname[1] + ' vs. ' + Xname[1] + ' with Spectral Clustering'); plt.xlabel(Xlabelunit[0]); plt.ylabel(Xlabelunit[1])
plt.xlim([Xmin[0],Xmax[0]]); plt.ylim([Xmin[1],Xmax[1]]); add_grid()
plt.gca().yaxis.set_major_formatter(FuncFormatter(comma_format))
for icon in range(0,len(connect)):
i,j = connect[icon]
plt.plot([df[Xname[0]][i],df[Xname[0]][j]],[df[Xname[1]][i],df[Xname[1]][j]],color='grey',lw=0.5,zorder=1)
for icon in range(0,len(new_vertices)):
i,j = new_vertices[icon]
plt.plot([df[Xname[0]][i],df[Xname[0]][j]],[df[Xname[1]][i],df[Xname[1]][j]],color='red',lw=1.0,zorder=1)
plt.legend(loc='lower right')
plt.subplot(122) # plot the clustering and graph
for k in range(1,K+1):
plt.scatter(df[df['Spectral']==k][Xname[0]], df[df['Spectral']==k][Xname[1]],c=cmap((k-1)/(K-1)),alpha = 1.0,
linewidths=1.0, edgecolors="black", cmap = cmap,label = 'Cluster ' + str(k),vmin=0,vmax=K,zorder=10)
plt.title(Xname[1] + ' vs. ' + Xname[1] + ' with Spectral Clustering'); plt.xlabel(Xlabelunit[0]); plt.ylabel(Xlabelunit[1])
plt.xlim([Xmin[0],Xmax[0]]); plt.ylim([Xmin[1],Xmax[1]]); add_grid()
plt.gca().yaxis.set_major_formatter(FuncFormatter(comma_format))
for icon in range(0,len(connect)):
i,j = connect[icon]
plt.plot([df[Xname[0]][i],df[Xname[0]][j]],[df[Xname[1]][i],df[Xname[1]][j]],color='grey',lw=0.5,zorder=1)
plt.legend(loc='lower right')
plt.subplots_adjust(left=0.0, bottom=0.0, right=2.0, top=1.1, wspace=0.2, hspace=0.2)
See the added vertices are shown as red bold lines above. Note the shift in the cluster groups across that gap that we connected.
even though all the data samples are connects, spectral clustering provides rational groups as it learns the difference between direct connections (two data samples connected by a vertex) and indirect connections (two data samples connected via multiple vertices passing through one or more other data samples).
once again, there is no meaning to the actual cluster group numbers, so don’t be concerned with the switch in the cluster group numerical and color assignments.
Spectral Clustering with Affinity Matrix from Kernel#
There are a variety of methods to calculate an affinity matrix from the data sample locations in the feature space.
a common method is to use kernel functions, like a radial basis function (RBF) kernel, parameterized by \(\gamma\):
where \(|| x_i - x_j ||\) is the distance between data samples \(x_i\) and \(x_j\) in the feature space.
since we are using a distance calculation, we are careful to ensure that normalized or standardize features are used
large \(\gamma\) - similarity is assigned locally
small \(\gamma\) - similarity persists over long distances

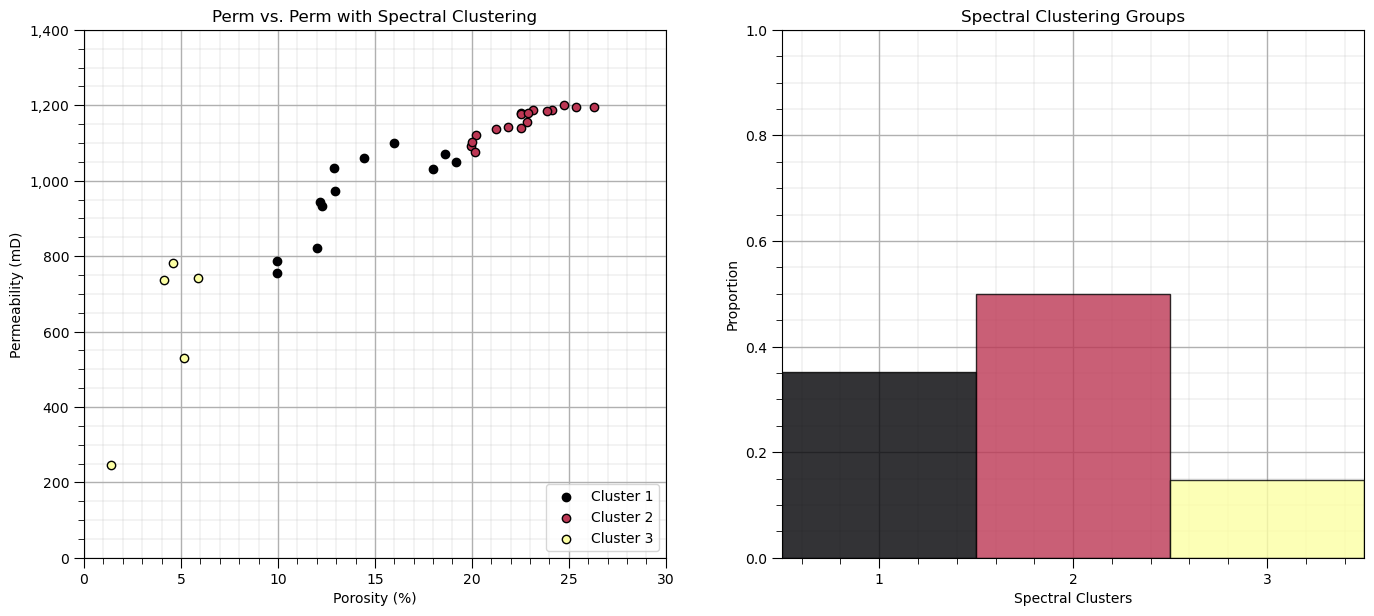

K = 3; gamma = 1.0
spectral = SpectralClustering(n_clusters=K,assign_labels="kmeans",affinity = 'rbf',
gamma = gamma,random_state=seed).fit(df[[nXname[0],nXname[1]]].values)
df['Spectral3'] = spectral.labels_ + 1
cluster_list = np.unique(df['Spectral3']); min_cluster = min(cluster_list); max_cluster = max(cluster_list)
cmap = plt.cm.inferno
plt.subplot(121) # plot the clusters and graph
for k in range(1,K+1):
plt.scatter(df[df['Spectral3']==k][Xname[0]], df[df['Spectral3']==k][Xname[1]],c=cmap((k-1)/(K-1)),alpha = 1.0,
linewidths=1.0, edgecolors="black", cmap = cmap,label = 'Cluster ' + str(k),vmin=0,vmax=K,zorder=10)
plt.title(Xname[1] + ' vs. ' + Xname[1] + ' with Spectral Clustering'); plt.xlabel(Xlabelunit[0]); plt.ylabel(Xlabelunit[1])
plt.xlim([Xmin[0],Xmax[0]]); plt.ylim([Xmin[1],Xmax[1]]); add_grid()
plt.gca().yaxis.set_major_formatter(FuncFormatter(comma_format)); plt.legend(loc='lower right')
plt.subplot(122) # plot the cluster and graph
N, bins, patches = plt.hist(df['Spectral3'],alpha=0.8,edgecolor="black",range=[min_cluster-0.5,max_cluster-0.5],
bins=np.insert(np.linspace(min_cluster,max_cluster,len(cluster_list))+0.5,0,min_cluster-0.5),density = True)
for i in range(0,len(cluster_list)):
patches[i].set_facecolor(cmap((cluster_list[i]-min_cluster)/(max_cluster-min_cluster)));
ax = plt.gca(); ax.set_xticks(cluster_list); plt.xlabel('Spectral Clusters'); plt.ylabel('Proportion')
plt.title('Spectral Clustering Groups'); plt.xlim([0.5,K+0.5]); plt.ylim([0,1]); add_grid()
plt.subplots_adjust(left=0.0, bottom=0.0, right=2.0, top=1.1, wspace=0.2, hspace=0.2)

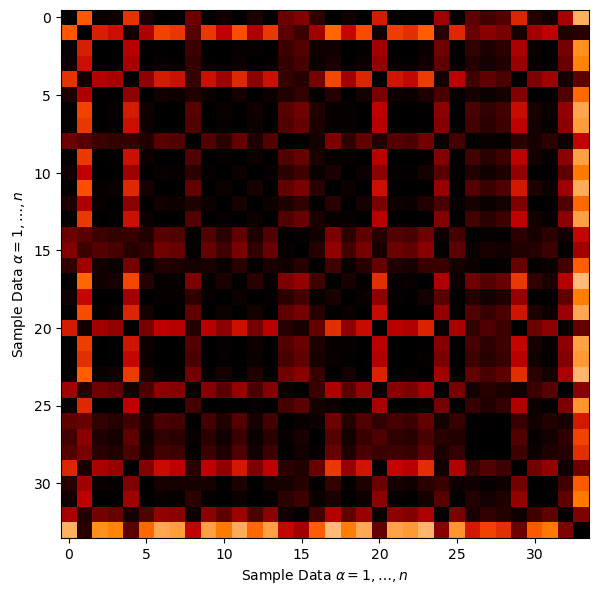

Let’s look at the affinity matrix that was calculated by scikit-learn’s SpectralClustering function to achieve this clustering result.
this is the pairwise connection between all of the sample data
plt.subplot(111) # plot the affinity matrix
plt.imshow(spectral.affinity_matrix_,cmap = plt.cm.gist_heat_r,vmin = 0.0, vmax = 1.0)
plt.xlabel(r'Sample Data $\alpha = 1, \ldots ,n$'); plt.ylabel(r'Sample Data $\alpha = 1, \ldots ,n$')
plt.subplots_adjust(left=0.0, bottom=0.0, right=1.0, top=1.1, wspace=0.2, hspace=0.2)
Here’s some general observations:
there is a large number of pairwise connections between the sample data
Let’s demonstrate the sensitivity of the solution to the model hyperparameters.

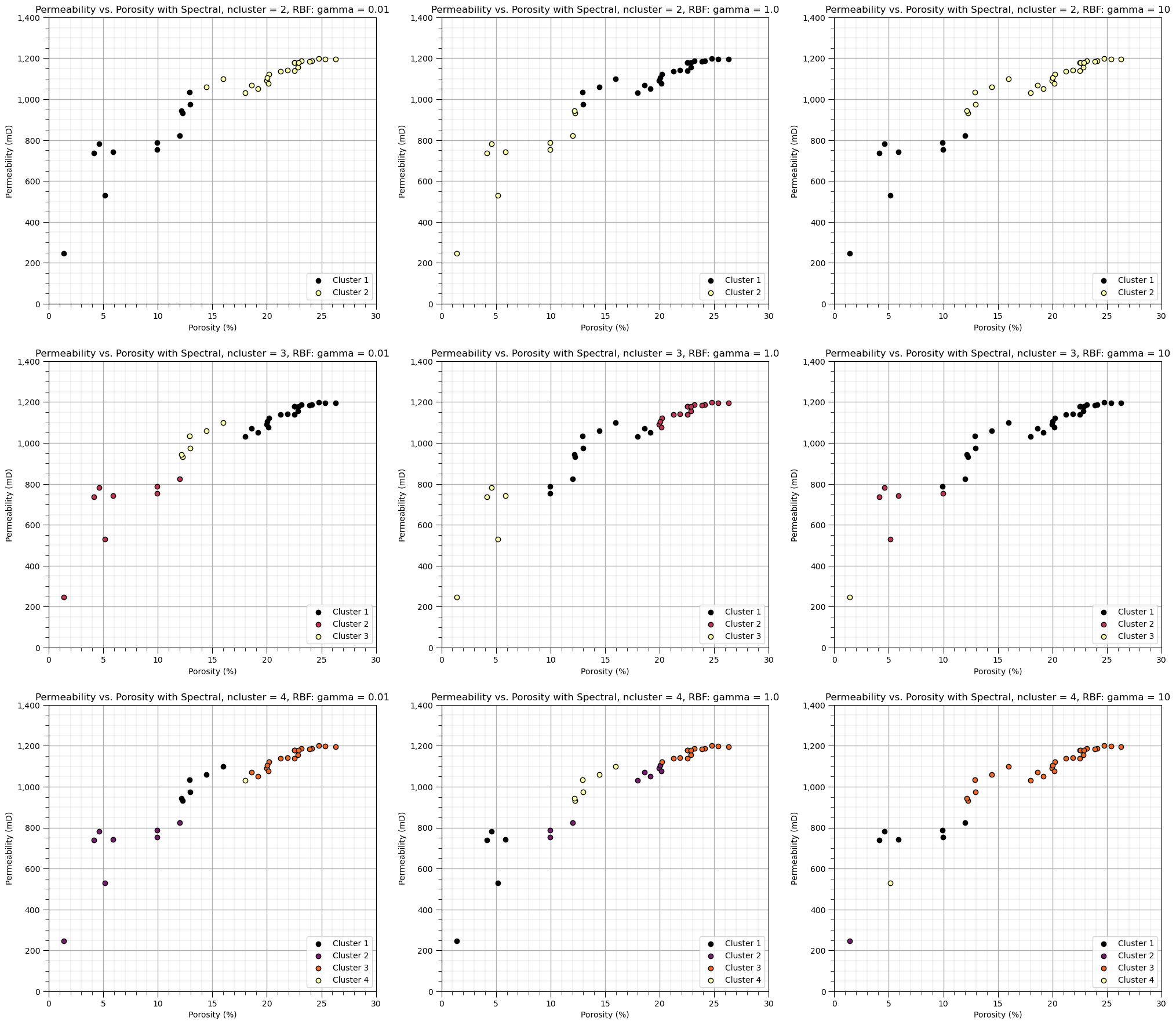

Let’s explore the sensitivity in the parameters, by looking at the results over a \(3 \times 3\) combinatorial of hyperparameters. Run this the first time as is and then try making changes to these values in this code.
ncluster_mat = [2,3,4]
gamma_mat = [0.01,1.0,10]
ncluster_mat = [2,3,4] # spectral clustering with RBF kernel affinity cases
gamma_mat = [0.01,1.0,10]
plt.subplot(121) # plot the clusters
index = 1
for ncluster in ncluster_mat:
for gamma in gamma_mat:
spectral = SpectralClustering(n_clusters=ncluster,assign_labels="kmeans",affinity = 'rbf',
gamma = gamma,n_neighbors = 200,random_state=230).fit(df[[nXname[0],nXname[1]]].values)
df['Spectral_test'] = spectral.labels_ + 1
plt.subplot(3,3,index)
for k in range(1,ncluster+1):
if len(df[df['Spectral_test']==k]) > 0:
plt.scatter(df[df['Spectral_test']==k][Xname[0]], df[df['Spectral_test']==k][Xname[1]],c=cmap((k-1)/(ncluster-1)),alpha = 1.0,
linewidths=1.0, edgecolors="black", cmap = cmap,label = 'Cluster ' + str(k),vmin=0,vmax=ncluster,zorder=10)
plt.title(Xlabel[1] + ' vs. ' + Xlabel[0] + ' with Spectral, ncluster = ' + str(ncluster) + ', RBF: gamma = ' + str(gamma));
plt.xlabel(Xlabelunit[0]); plt.ylabel(Xlabelunit[1])
plt.xlim([Xmin[0],Xmax[0]]); plt.ylim([Xmin[1],Xmax[1]]); add_grid()
plt.gca().yaxis.set_major_formatter(FuncFormatter(comma_format))
plt.legend(loc='lower right')
index = index + 1
plt.subplots_adjust(left=0.0, bottom=0.0, right=3.0, top=3.50, wspace=0.2, hspace=0.2)
An observation from these spectral cluster group assignments:
as gamma increases, range of similarity is reduced and the model is more sensitive to gaps in the data.
Want to Work Together?#
I hope this content is helpful to those that want to learn more about subsurface modeling, data analytics and machine learning. Students and working professionals are welcome to participate.
Want to invite me to visit your company for training, mentoring, project review, workflow design and / or consulting? I’d be happy to drop by and work with you!
Interested in partnering, supporting my graduate student research or my Subsurface Data Analytics and Machine Learning consortium (co-PI is Professor John Foster)? My research combines data analytics, stochastic modeling and machine learning theory with practice to develop novel methods and workflows to add value. We are solving challenging subsurface problems!
I can be reached at mpyrcz@austin.utexas.edu.
I’m always happy to discuss,
Michael
Michael Pyrcz, Ph.D., P.Eng. Professor, Cockrell School of Engineering and The Jackson School of Geosciences, The University of Texas at Austin
Comments#
I hope you found this chapter helpful. Much more could be done and discussed, I have many more resources. Check out my shared resource inventory,
Michael
