Polynomial Regression#
Michael J. Pyrcz, Professor, The University of Texas at Austin
Twitter | GitHub | Website | GoogleScholar | Book | YouTube | Applied Geostats in Python e-book | LinkedIn
Chapter of e-book “Applied Machine Learning in Python: a Hands-on Guide with Code”.
Cite this e-Book as:
Pyrcz, M.J., 2024, Applied Machine Learning in Python: a Hands-on Guide with Code, https://geostatsguy.github.io/MachineLearningDemos_Book.
The workflows in this book and more are available here:
Cite the MachineLearningDemos GitHub Repository as:
Pyrcz, M.J., 2024, MachineLearningDemos: Python Machine Learning Demonstration Workflows Repository (0.0.1). Zenodo.
By Michael J. Pyrcz
© Copyright 2024.
This chapter is a tutorial for / demonstration of Polynomial Regression.
YouTube Lecture: check out my lectures on:
These lectures are all part of my Machine Learning Course on YouTube with linked well-documented Python workflows and interactive dashboards. My goal is to share accessible, actionable, and repeatable educational content. If you want to know about my motivation, check out Michael’s Story.
Motivations for Polynomial Regression#
By moving from linear regression to polynomial regression we,
add prediction flexibility by modeling non-linearity in our data
build on the feature engineering concept of feature expansion
while benefiting from the analytical solutions for training model parameters like linear regression. Let’s start with linear regression and then build summarize polynomial regression.
Linear Regression#
Linear regression for prediction. Here are some key aspects of linear regression:
Parametric Model
the fit model is a simple weighted linear additive model based on all the available features, \(x_1,\ldots,x_m\).
the model takes the form of \(y = \sum_{\alpha = 1}^m b_{\alpha} x_{\alpha} + b_0\)
Least Squares
least squares optimization is applied to select the model parameters, \(b_1,\ldots,b_m,b_0\)
we minimize the error over the training data \(\sum_{i=1}^n (y_i - (\sum_{\alpha = 1}^m b_{\alpha} x_{\alpha} + b_0))^2\)
this could be simplified as the sum of square error over the training data, \(\sum_{i=1}^n (\Delta y_i)^2\)
Assumptions
Error-free - predictor variables are error free, not random variables
Linearity - response is linear combination of feature(s)
Constant Variance - error in response is constant over predictor(s) value
Independence of Error - error in response are uncorrelated with each other
No multicollinearity - none of the features are redundant with other features
Predictor Feature / Basis Expansion#
We can improve model flexibility and complexity by applying basis expansion with basis functions applied to our predictor features. The fundamental idea is to utilize a suite of basis functions, \(h_1, h_2, \ldots, h_k\), that provide new predictor features.
where we from one feature \(X\) to an expanded basis of \(k\) features, \(X_1, X_2,\ldots, X_k\).
if we had \(m\) features in our data table, we now have \(k \times m\) features
Polynomial Regression#
It can be shown that polynomial regression is just linear regression applied to a polynomial expansion of the predictor features.
where we have \(j = 1, \ldots, m\) original features.
We now have a expanded set of predictor features.
were we have \(j = 1, \ldots, m\) original features and \(k = 1, \ldots, K\) polynomial orders.
We can now state our model as a linear regression of the transformed features.
after the \(h_l, l=1,\ldots,k\) transforms, over the \(j=1,\ldots,m\) predictor features we have the same linear equation and the ability to utilize the previously discussed analytical solution, see the chapter on linear regression.
We are assuming linearity after application of our basis transforms.
now the model coefficients, \(\beta_{l,i}\), relate to a transformed version of the initial predictor feature, \(h_l(X_i)\).
but we lose the ability to interpret the coefficients, e.g., what is \(\phi^4\) where \(\phi\) is porosity?
For example, with a single predictor feature, \(m = 1\), and up to a \(4^{th}\) order the model is,
where the model parameter notation is \(\beta_{m,k}\), were \(m\) is the feature and \(k\) is the order. To clarify here is the case for \(m = 2\),
So our predictive modeling workflow is:
apply polynomial basis expansion
perform linear regression on the polynomial basis expansion
Load the Required Libraries#
We will also need some standard packages. These should have been installed with Anaconda 3.
%matplotlib inline
suppress_warnings = True
import os # to set current working directory
import math # square root operator
import numpy as np # arrays and matrix math
import scipy # Hermite polynomials
from scipy import stats # statistical methods
import pandas as pd # DataFrames
import pandas.plotting as pd_plot
import matplotlib.pyplot as plt # for plotting
from matplotlib.ticker import (MultipleLocator,AutoMinorLocator,FuncFormatter) # control of axes ticks
from matplotlib.colors import ListedColormap # custom color maps
import seaborn as sns # for matrix scatter plots
from sklearn.linear_model import LinearRegression # linear regression with scikit learn
from sklearn.preprocessing import PolynomialFeatures # polynomial basis expansion
from sklearn import metrics # measures to check our models
from sklearn.preprocessing import (StandardScaler,PolynomialFeatures) # standardize the features, polynomial basis expansion
from sklearn.model_selection import (cross_val_score,train_test_split,GridSearchCV,KFold) # model tuning
from sklearn.pipeline import (Pipeline,make_pipeline) # machine learning modeling pipeline
from sklearn import metrics # measures to check our models
from sklearn.model_selection import cross_val_score # multi-processor K-fold crossvalidation
from sklearn.model_selection import train_test_split # train and test split
from IPython.display import display, HTML # custom displays
cmap = plt.cm.inferno # default color bar, no bias and friendly for color vision defeciency
plt.rc('axes', axisbelow=True) # grid behind plotting elements
if suppress_warnings == True:
import warnings # supress any warnings for this demonstration
warnings.filterwarnings('ignore')
seed = 13 # random number seed for workflow repeatability
If you get a package import error, you may have to first install some of these packages. This can usually be accomplished by opening up a command window on Windows and then typing ‘python -m pip install [package-name]’. More assistance is available with the respective package docs.
Declare Functions#
Let’s define a convenience function to add gridlines to our plots and to plot correlation matrices.
def add_grid():
plt.gca().grid(True, which='major',linewidth = 1.0); plt.gca().grid(True, which='minor',linewidth = 0.2) # add y grids
plt.gca().tick_params(which='major',length=7); plt.gca().tick_params(which='minor', length=4)
plt.gca().xaxis.set_minor_locator(AutoMinorLocator()); plt.gca().yaxis.set_minor_locator(AutoMinorLocator()) # turn on minor ticks
def plot_corr(corr_matrix,title,limits,mask): # plots a graphical correlation matrix
my_colormap = plt.get_cmap('RdBu_r', 256)
newcolors = my_colormap(np.linspace(0, 1, 256))
white = np.array([256/256, 256/256, 256/256, 1])
white_low = int(128 - mask*128); white_high = int(128+mask*128)
newcolors[white_low:white_high, :] = white # mask all correlations less than abs(0.8)
newcmp = ListedColormap(newcolors)
m = corr_matrix.shape[0]
im = plt.matshow(corr_matrix,fignum=0,vmin = -1.0*limits, vmax = limits,cmap = newcmp)
plt.xticks(range(len(corr_matrix.columns)), corr_matrix.columns); ax = plt.gca()
ax.xaxis.set_label_position('bottom'); ax.xaxis.tick_bottom()
plt.yticks(range(len(corr_matrix.columns)), corr_matrix.columns)
plt.colorbar(im, orientation = 'vertical')
plt.title(title)
for i in range(0,m):
plt.plot([i-0.5,i-0.5],[-0.5,m-0.5],color='black')
plt.plot([-0.5,m-0.5],[i-0.5,i-0.5],color='black')
plt.ylim([-0.5,m-0.5]); plt.xlim([-0.5,m-0.5])
Set the Working Directory#
I always like to do this so I don’t lose files and to simplify subsequent read and writes (avoid including the full address each time).
#os.chdir("c:/PGE383") # set the working directory
You will have to update the part in quotes with your own working directory and the format is different on a Mac (e.g. “~/PGE”).
Loading Data#
Let’s load the provided bivariate, spatial dataset Density_Por_data.csv available in my GeoDataSet repo. It is a comma delimited file with:
depth (m)
Gaussian transformed porosity (%)
We load it with the pandas ‘read_csv’ function into a data frame we called ‘df’.
df = pd.read_csv(r"https://raw.githubusercontent.com/GeostatsGuy/GeoDataSets/master/1D_Porosity.csv") # data from Dr. Pyrcz's github repository
Visualize the DataFrame#
Visualizing the train and test DataFrame is useful check before we build our models.
many things can go wrong, e.g., we loaded the wrong data, all the features did not load, etc.
We can preview by utilizing the ‘head’ DataFrame member function (with a nice and clean format, see below).
df.head(n=13) # preview the data
| Depth | Nporosity | |
|---|---|---|
| 0 | 0.25 | -1.37 |
| 1 | 0.50 | -2.08 |
| 2 | 0.75 | -1.67 |
| 3 | 1.00 | -1.16 |
| 4 | 1.25 | -0.24 |
| 5 | 1.50 | -0.36 |
| 6 | 1.75 | 0.44 |
| 7 | 2.00 | 0.36 |
| 8 | 2.25 | -0.02 |
| 9 | 2.50 | -0.63 |
| 10 | 2.75 | -1.26 |
| 11 | 3.00 | -1.03 |
| 12 | 3.25 | 0.88 |
Summary Statistics for Tabular Data#
There are a lot of efficient methods to calculate summary statistics from tabular data in DataFrames.
The describe command provides count, mean, standard deviation, percentiles, minimum, maximum in a nice data table.
I like to specify the percentiles, otherwise P25, P50 and P75 quartiles are the default
df.describe(percentiles=[0.1,0.9]).transpose() # summary statistics
| count | mean | std | min | 10% | 50% | 90% | max | |
|---|---|---|---|---|---|---|---|---|
| Depth | 40.0 | 5.12500 | 2.922613 | 0.25 | 1.225 | 5.125 | 9.025 | 10.00 |
| Nporosity | 40.0 | 0.02225 | 0.992111 | -2.08 | -1.271 | 0.140 | 1.220 | 2.35 |
Here we extract the Depth and Gaussian transformed porosity, Nporosity, from the DataFrame into separate 1D arrays called ‘depth’ and ‘NPor’ for readable code.
warning, this is a shallow copy, if we change these 1D arrays, the change will be reflected back in the original DataFrame
Xname = ['Depth']; yname = ['Nporosity'] # select the predictor and response feature
Xlabel = ['Depth']; ylabel = ['Gaussian Transformed Porosity'] # specify the feature labels for plotting
Xunit = ['m']; yunit = ['N[%]']
Xlabelunit = [Xlabel[0] + ' (' + Xunit[0] + ')']
ylabelunit = ylabel[0] + ' (' + yunit[0] + ')'
X = df[Xname[0]] # extract the 1D ndarrays from the DataFrame
y = df[yname[0]]
Xmin = 0.0; Xmax = 10.0 # limits for plotting
ymin = -3.0; ymax = 3.0
X_values = np.linspace(Xmin,Xmax,100) # X intervals to visualize the model
Linear Regression Model#
Let’s first calculate the linear regression model with the LinearRegression class from scikit-learn. The steps include,
instantiate - the linear regression object, note there are no hyperparameters to specify.
fit - train the instantiated linear regression object with the training data
predict - with the trained linear regression object
Here’s the instantiation and fit steps for our linear regression model.
note, we add the reshape to our predictor feature because scikit-learn assumes more than one predictor feature and expects a 2D array. We reshape our 1D ndarray to a 2D array with only 1 column.
After we train the model we plot it with the data for visual model checking.
lin = LinearRegression() # instantiate linear regression object, note no hyperparameters
lin.fit(X.values.reshape(-1, 1), y) # train linear regression model
slope = lin.coef_[0] # get the model parameters
intercept = lin.intercept_
plt.subplot(111) # plot the data and the model
plt.scatter(X,y,marker='o',label='data',color = 'darkorange',alpha = 0.8,edgecolor = 'black')
plt.plot(X_values,intercept + slope*X_values,label='model',color = 'black')
plt.title('Linear Regression Model, Regression of ' + yname[0] + ' on ' + Xname[0])
plt.xlabel(Xname[0] + ' (' + Xunit[0] + ')')
plt.ylabel(yname[0] + ' (' + yunit[0] + ')')
plt.legend(); add_grid(); plt.xlim([Xmin,Xmax]); plt.ylim([ymin,ymax])
plt.annotate('Linear Regression Model',[4.5,-1.8])
plt.annotate(r' $\beta_1$ :' + str(round(slope,2)),[6.8,-2.3])
plt.annotate(r' $\beta_0$ :' + str(round(intercept,2)),[6.8,-2.7])
plt.annotate(r'$N[\phi] = \beta_1 \times z + \beta_0$',[4.0,-2.3])
plt.annotate(r'$N[\phi] = $' + str(round(slope,2)) + r' $\times$ $z$ + (' + str(round(intercept,2)) + ')',[4.0,-2.7])
plt.subplots_adjust(left=0.0, bottom=0.0, right=1.4, top=0.8, wspace=0.2, hspace=0.2); plt.show()
Comparison to a Nonparametric Predictive Machine Learning Model#
Let’s run a couple nonparametric predictive machine learning models to contrast with the linear and polynomial parametric models. First we train a quick decision tree model and then a random forest model.
we gain significant flexibility to fit any patterns from the data
requires more inference as nonparametric is actually parameter rich!
For more details, see the chapter on decision trees and random forest.
from sklearn import tree # tree program from scikit learn
my_tree = tree.DecisionTreeRegressor(min_samples_leaf=5, max_depth = 20) # instantiate the decision tree model with hyperparameters
my_tree = my_tree.fit(X.values.reshape(-1, 1),y) # fit the decision tree to the training data (all the data in this case)
DT_y = my_tree.predict(X_values.reshape(-1,1)) # predict at high resolution over the range of depths
plt.subplot(111) # plot the model and data
plt.scatter(X,y,marker='o',label='data',color = 'darkorange',alpha = 0.8,edgecolor = 'black')
plt.plot(X_values, DT_y, label='model', color = 'black')
plt.title('Decision Tree Model, ' + yname[0] + ' as a Function of ' + Xname[0])
plt.xlabel(Xname[0] + ' (' + Xunit[0] + ')')
plt.ylabel(yname[0] + ' (' + yunit[0] + ')')
plt.legend(); add_grid(); plt.xlim([Xmin,Xmax]); plt.ylim([ymin,ymax])
plt.subplots_adjust(left=0.0, bottom=0.0, right=1.4, top=0.8, wspace=0.2, hspace=0.2); plt.show()
and here is a random forest model:
from sklearn.ensemble import RandomForestRegressor # random forest method
max_depth = 5 # set the random forest hyperparameters
num_tree = 1000
max_features = 1
my_forest = RandomForestRegressor(max_depth=max_depth,random_state=seed,n_estimators=num_tree,max_features=max_features)
my_forest.fit(X = X.values.reshape(-1, 1), y = y)
RF_y = my_forest.predict(X_values.reshape(-1,1))
plt.subplot(111)
plt.scatter(X,y,marker='o',label='data',color = 'darkorange',alpha = 0.8,edgecolor = 'black')
plt.plot(X_values, RF_y, label='model', color = 'black')
plt.title('Random Forest Tree Model, ' + yname[0] + ' as a Function of ' + Xname[0])
plt.xlabel(Xname[0] + ' (' + Xunit[0] + ')')
plt.ylabel(yname[0] + ' (' + yunit[0] + ')')
plt.legend(); add_grid(); plt.xlim([Xmin,Xmax]); plt.ylim([ymin,ymax])
plt.subplots_adjust(left=0.0, bottom=0.0, right=2.0, top=1.0, wspace=0.2, hspace=0.2)
plt.show()
Note, no effort was made to tune the hyperparameters for these models. I just wanted to demonstrate the great flexibility of a nonparametric model to learn the shape of the system from the data.
Now, we return to our parametric polynomial model.
Let’s first transform our data to be standard normal, Gaussian.
We do this to improve the model fit (handle outliers) and to comply with theory for the Hermite polynomials that will be introduced shortly.
Gaussian Anamorphosis \ Gaussian Transform#
Let’s transform the features to standard normal,
Gaussian distribution
mean of 0.0
standard deviation of 1.0
The porosity feature was ‘transformed’ to Gaussian previously, but there is an opportunity to clean it up.
compare the original and transformed below
note, I use my GeostatsPy Gaussian transform ported from the original GSLIB (Deutsch and Journel, 1997) because the scikit-learn Gaussian transform creates truncation spikes / outliers.
import geostatspy.geostats as geostats # for Gaussian transform from GSLIB
df_ns = pd.DataFrame()
df_ns[Xname[0]], tvPor, tnsPor = geostats.nscore(df, Xname[0]) # nscore transform for all facies porosity
df_ns[yname[0]], tvdepth, tnsdepth = geostats.nscore(df, yname[0]) # nscore transform for all facies permeability
X_ns = df_ns[Xname[0]]; y_ns = df_ns[yname[0]]
X_ns_values = np.linspace(-3.0,3.0,1000) # values to predict at in standard normal space
Let’s make some good cumulative distribution function plots to check the original and transformed variables.
the results look very good
We are doing this because we will need a Gaussian distribution for the predictor feature for orthogonality. More later!
plt.subplot(221) # plot original sand and shale porosity histograms
plt.hist(df[Xname[0]], facecolor='red',bins=np.linspace(Xmin,Xmax,1000),histtype="stepfilled",alpha=0.2,density=True,
cumulative=True,edgecolor='black',label='Original')
plt.xlim([0.0,10.0]); plt.ylim([0,1.0])
plt.xlabel(Xname[0] + ' (' + Xunit[0] + ')'); plt.ylabel('Frequency'); plt.title('Original Depth')
plt.legend(loc='upper left')
plt.grid(True)
plt.subplot(222)
plt.hist(df_ns[Xname[0]], facecolor='blue',bins=np.linspace(-3.0,3.0,1000),histtype="stepfilled",alpha=0.2,density=True,
cumulative=True,edgecolor='black',label = 'NS')
plt.xlim([-3.0,3.0]); plt.ylim([0,1.0])
plt.xlabel('NS: ' + Xname[0] + ' (' + Xunit[0] + ')'); plt.ylabel('Frequency'); plt.title('Nscore ' + Xname[0])
plt.legend(loc='upper left')
plt.grid(True)
plt.subplot(223) # plot nscore transformed sand and shale histograms
plt.hist(df[yname[0]], facecolor='red',bins=np.linspace(ymin,ymax,1000),histtype="stepfilled",alpha=0.2,density=True,
cumulative=True,edgecolor='black',label='Original')
plt.xlim([-3.0,3.0]); plt.ylim([0,1.0])
plt.xlabel(yname[0] + ' (' + yunit[0] + ')'); plt.ylabel('Frequency'); plt.title('Original Porosity')
plt.legend(loc='upper left')
plt.grid(True)
plt.subplot(224) # plot nscore transformed sand and shale histograms
plt.hist(df_ns[yname[0]], facecolor='blue',bins=np.linspace(-3.0,3.0,1000),histtype="stepfilled",alpha=0.2,density=True,
cumulative=True,edgecolor='black',label = 'NS')
plt.xlim([-3.0,3.0]); plt.ylim([0,1.0])
plt.xlabel('NS: ' + yname[0] + ' (' + yunit[0] + ')'); plt.ylabel('Frequency'); plt.title('Nscore ' + yname[0])
plt.legend(loc='upper left')
plt.grid(True)
plt.subplots_adjust(left=0.0, bottom=0.0, right=1.5, top=2.0, wspace=0.2, hspace=0.3); plt.show()
Linear Regression Model with Standardized Features#
Let’s repeat the linear regression model, now with the standardized features.
lin_ns = LinearRegression() # instantiate linear regression object, note no hyperparameters
lin_ns.fit(X_ns.values.reshape(-1, 1), y_ns) # train linear regression model
slope_ns = lin_ns.coef_[0] # get the model parameters
intercept_ns = lin_ns.intercept_
plt.subplot(111) # plot the data and the model
plt.scatter(X_ns,y_ns,marker='o',label='data',color = 'darkorange',alpha = 0.8,edgecolor = 'black')
plt.plot(X_ns_values,intercept_ns + slope_ns*X_ns_values,label='model',color = 'black')
plt.title('Linear Regression Model, Regression of NS ' + yname[0] + ' on ' + Xname[0])
plt.xlabel('NS: ' + Xname[0] + ' (' + Xunit[0] + ')')
plt.ylabel('NS: ' + yname[0] + ' (' + yunit[0] + ')')
plt.legend(); add_grid(); plt.xlim([-3.0,3.0]); plt.ylim([ymin,ymax])
plt.annotate('Linear Regression Model',[0.8,-1.8])
plt.annotate(r' $\beta_1$ :' + str(round(slope_ns,2)),[1.8,-2.3])
plt.annotate(r' $\beta_0$ :' + str(round(intercept_ns,2)),[1.8,-2.7])
plt.annotate(r'$N[\phi] = \beta_1 \times z + \beta_0$',[0.5,-2.3])
plt.annotate(r'$N[\phi] = $' + str(round(slope_ns,2)) + r' $\times$ $z$ + (' + str(round(intercept_ns,2)) + ')',[0.5,-2.7])
plt.subplots_adjust(left=0.0, bottom=0.0, right=1.4, top=0.8, wspace=0.2, hspace=0.2); plt.show()
Once again, not a good fit. Let’s use a more complex, flexible predictive machine learning model.
Polynomial Regression#
We will do polynomial regression by hand:
create the polynomial basis expansion of the original predictor feature
perform linear regression on the polynomial basis expansion
Polynomial Basis Expansion#
Let’s start with calculating the polynomial basis expansion for the 1 predictor feature.
poly4 = PolynomialFeatures(degree = 4) # instantiate polynomial expansion
X_ns_poly4 = poly4.fit_transform(X_ns.values.reshape(-1, 1)) # calculate the basis expansion for our dataset
df_X_ns_poly4 = pd.DataFrame({'Values':X_ns,'0th':X_ns_poly4[:,0],'1st':X_ns_poly4[:,1],'2nd':X_ns_poly4[:,2],
'3rd':X_ns_poly4[:,3],'4th':X_ns_poly4[:,4]}) # make a new DataFrame from the vectors
df_X_ns_poly4 = pd.DataFrame({'Values':X_ns,'1st':X_ns_poly4[:,1],'2nd':X_ns_poly4[:,2],
'3rd':X_ns_poly4[:,3],'4th':X_ns_poly4[:,4]}) # make a new DataFrame from the vectors
df_X_ns_poly4.head() # preview the polynomial basis expansion with the original predictor feature
| Values | 1st | 2nd | 3rd | 4th | |
|---|---|---|---|---|---|
| 0 | -2.026808 | -2.026808 | 4.107951 | -8.326029 | 16.875264 |
| 1 | -1.780464 | -1.780464 | 3.170053 | -5.644167 | 10.049238 |
| 2 | -1.534121 | -1.534121 | 2.353526 | -3.610592 | 5.539084 |
| 3 | -1.356312 | -1.356312 | 1.839582 | -2.495046 | 3.384060 |
| 4 | -1.213340 | -1.213340 | 1.472193 | -1.786270 | 2.167352 |
Now let’s check the correlation between the polynomial basis expansion of the original predictor features data.
Recall that a high degree of correlation between predictor features increases model variance.
corr_matrix = df_X_ns_poly4.iloc[:,1:].corr() # calculate the correlation matrix
plt.subplot(111)
plot_corr(corr_matrix,'Polynomial Expansion Correlation Matrix',1.0,0.1) # using our correlation matrix visualization function
plt.xlabel('Features'); plt.ylabel('Features')
plt.subplots_adjust(left=0.0, bottom=0.0, right=1.0, top=0.8, wspace=0.2, hspace=0.3); plt.show()
We have high correlations between order 1 and 3 and order 2 and 4.

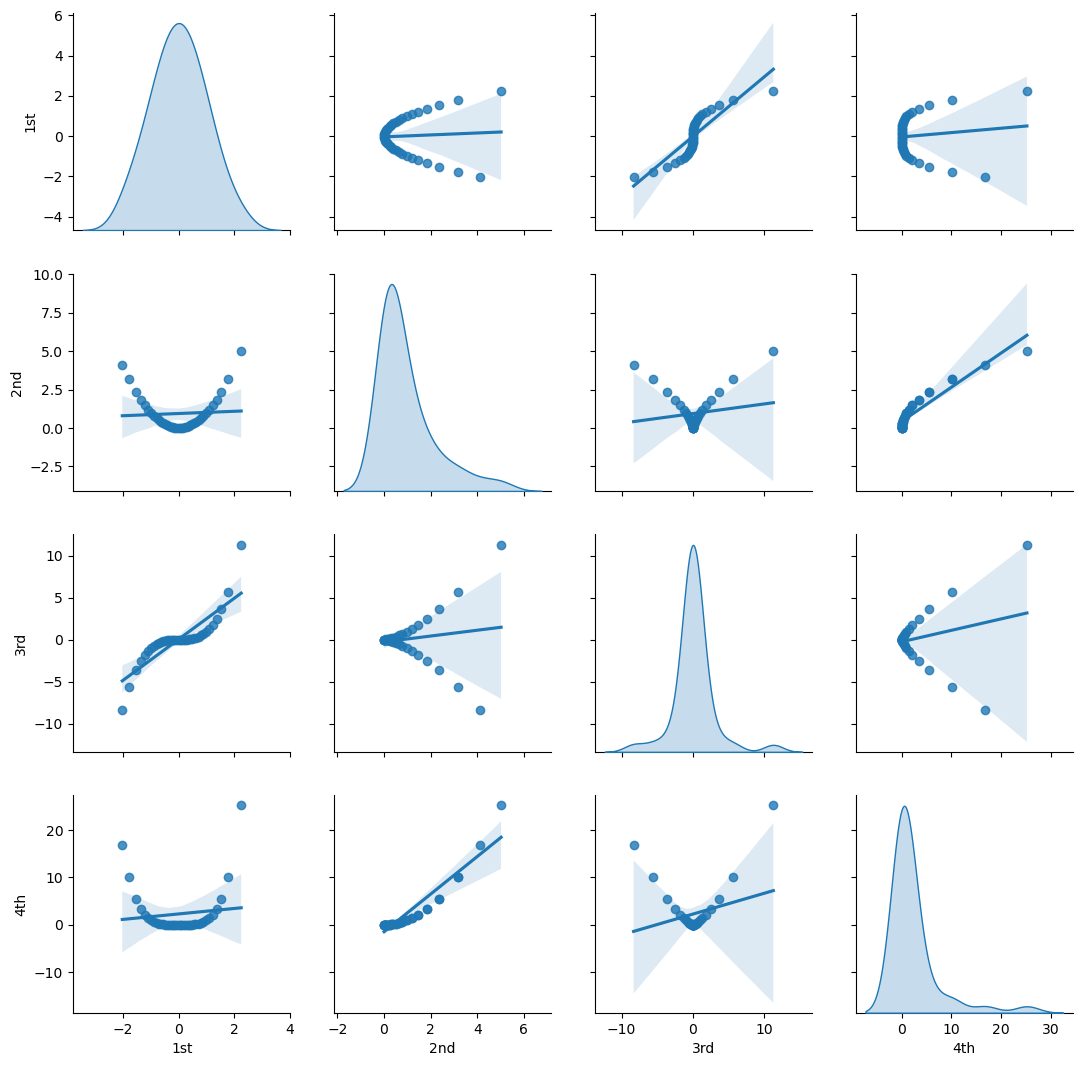

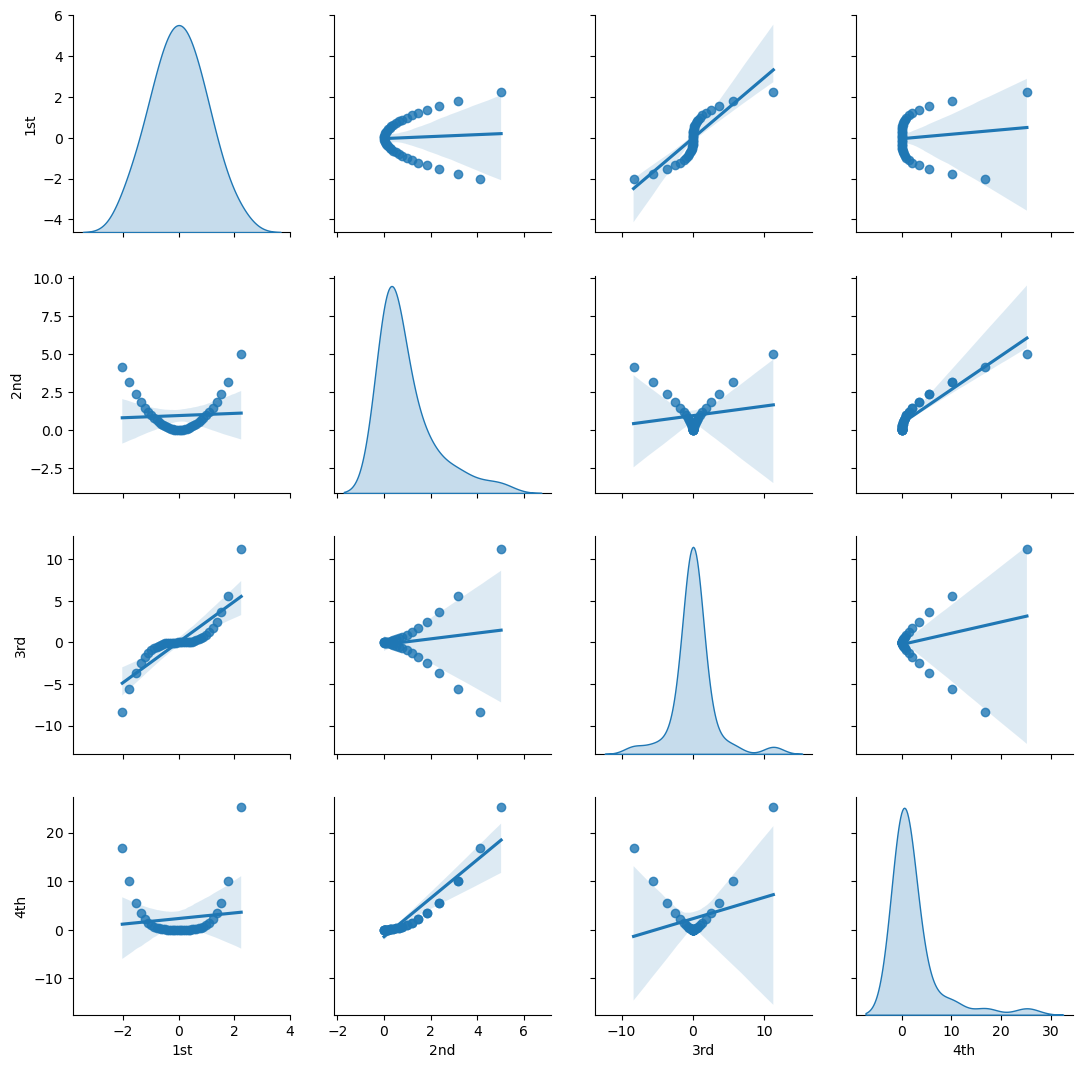

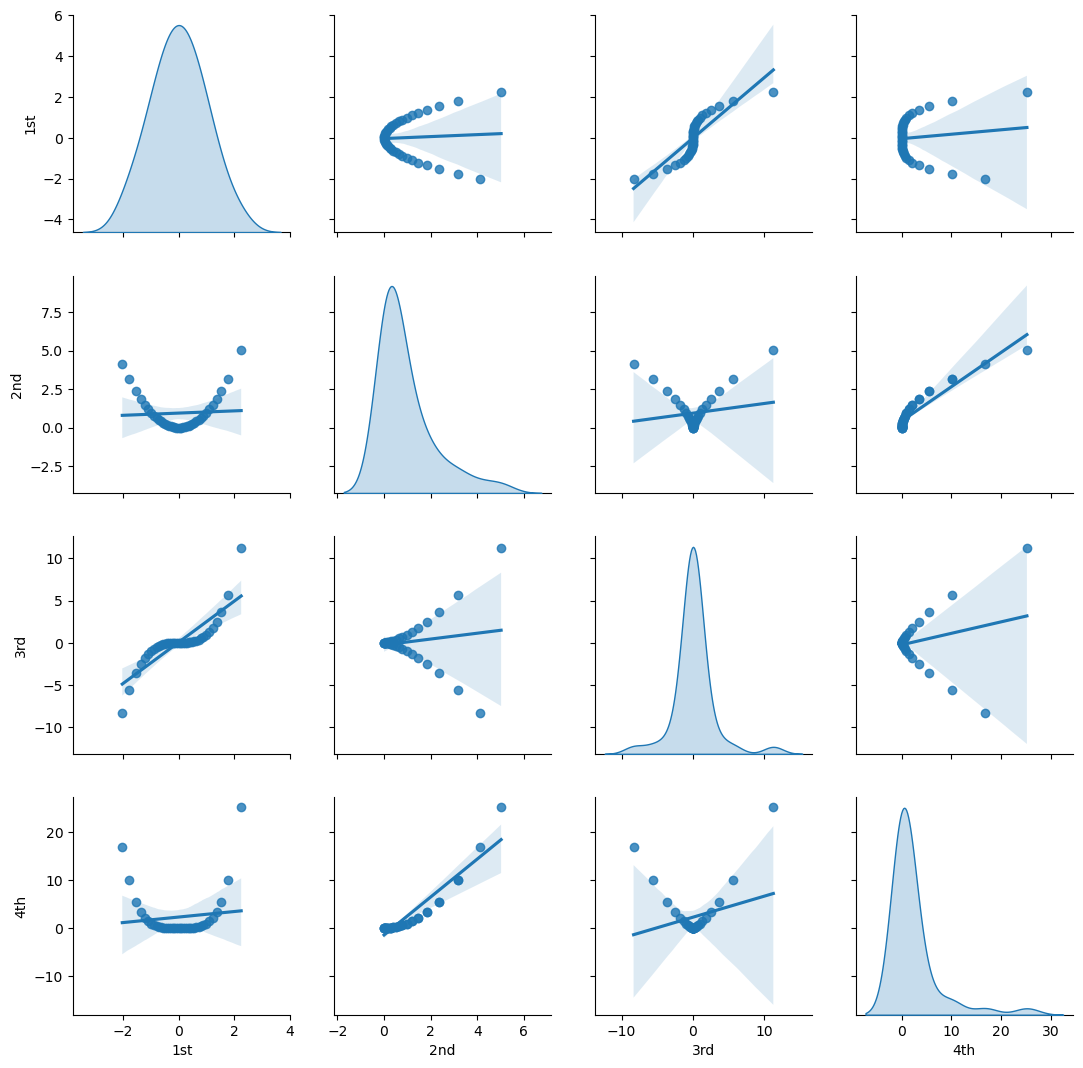

Let’s check this with matrix scatter plot of the polynomial basis.
Visualize the Polynomial Expansion Features’ Pairwise Relationship#
sns.pairplot(df_X_ns_poly4.iloc[:,1:],vars=['1st','2nd','3rd','4th'],markers='o', kind='reg',diag_kind='kde')
plt.subplots_adjust(left=0.0, bottom=0.0, right=1.0, top=1.0, wspace=0.2, hspace=0.2); plt.show()
Let’s visualize the polynomial expansion over the Gaussian transformed depth.
plt.subplot(111) # plot the polynomial basis expansion
plt.plot(X_ns_values,poly4.fit_transform(X_ns_values.reshape(-1, 1))[:,0],label='0th',color = 'black')
plt.plot(X_ns_values,poly4.fit_transform(X_ns_values.reshape(-1, 1))[:,1],label='1th',color = 'blue')
plt.plot(X_ns_values,poly4.fit_transform(X_ns_values.reshape(-1, 1))[:,2],label='2th',color = 'green')
plt.plot(X_ns_values,poly4.fit_transform(X_ns_values.reshape(-1, 1))[:,3],label='3th',color = 'red')
plt.plot(X_ns_values,poly4.fit_transform(X_ns_values.reshape(-1, 1))[:,4],label='4th',color = 'orange')
plt.title('Polynomial Basis Expansion of ' + Xname[0])
plt.xlabel('NS: ' + Xname[0] + ' (' + Xunit[0] + ')')
plt.ylabel('h[ NS: ' + Xname[0] + ' (' + Xunit[0] + ') ]')
plt.legend(); plt.xlim(-3,3); add_grid()
plt.subplots_adjust(left=0.0, bottom=0.0, right=2.0, top=1.0, wspace=0.2, hspace=0.2); plt.show()
We can also check the arithmetic average of each polynomial basis expansion.
print('The averages of each basis expansion, 0 - 4th order = ' + str(stats.describe(X_ns_poly4)[2]) + '.')
The averages of each basis expansion, 0 - 4th order = [1. 0.00536486 0.9458762 0.07336308 2.31077802].
Let’s fit the linear regression model to the polynomial basis expansion.
note the model is quite flexible to fit this complicated / nonlinear data
lin_poly4 = LinearRegression() # instantiate new linear model
lin_poly4.fit(df_X_ns_poly4.iloc[:,1:], y_ns) # train linear model with polynomial expansion, polynomial regression
b1,b2,b3,b4 = np.round(lin_poly4.coef_,3) # retrieve the model parameters
b0 = lin_poly4.intercept_
plt.subplot(111)
plt.plot(X_ns_values,lin_poly4.predict(poly4.fit_transform(X_ns_values.reshape(-1, 1))[:,1:]),label='polynomial',color = 'red')
plt.scatter(X_ns,y_ns,marker='o',label='data',color = 'darkorange',alpha = 0.8,edgecolor = 'black')
plt.title('Polynomial Regression Model, Regression of NS ' + yname[0] + ' on NS ' + Xname[0])
plt.xlabel('NS: ' + Xname[0] + ' (' + Xunit[0] + ')')
plt.ylabel('NS: ' + yname[0] + ' (' + yunit[0] + ')')
plt.legend(); add_grid(); plt.xlim([-3.0,3.0]); plt.ylim([ymin,ymax])
plt.annotate('Polynomial Regression Model',[-2.8,2.6])
plt.annotate(r' $\beta_4$ :' + str(round(b4,3)),[-2.8,2.1])
plt.annotate(r' $\beta_3$ :' + str(round(b3,3)),[-2.8,1.7])
plt.annotate(r' $\beta_2$ :' + str(round(b2,3)),[-2.8,1.3])
plt.annotate(r' $\beta_1$ :' + str(round(b1,3)),[-2.8,0.9])
plt.annotate(r' $\beta_0$ :' + str(round(b0,2)),[-2.8,0.5])
plt.annotate(r'$N[\phi] = \beta_4 \times N[z]^4 + \beta_3 \times N[z]^3 + \beta_2 \times N[z]^2 + \beta_1 \times N[z] + \beta_0$',[-1.0,-2.0])
plt.annotate(r'$N[\phi] = $' + str(b4) + r' $\times N[z]^4 +$ ' + str(b3) + r' $\times N[z]^3 +$ ' + str(b2) + r' $\times N[z]^2 +$ ' +
str(b1) + r' $\times N[z]$ + ' + str(round(b0,2)),[-1.0,-2.5])
plt.subplots_adjust(left=0.0, bottom=0.0, right=1.4, top=0.8, wspace=0.2, hspace=0.2); plt.show()
Regression with Hermite Basis Expansion#
We can use Hermite polynomials to reduce the correlation between the basis predictor features.
We transform the predictor feature, depth, to standard normal since the Hermite polynomial expansion approach independence over the range of negative infinity to positive infinity under the assumption of standard normal probability density function.
orders4 = [1,2,3,4] # specify the orders for Hermite basis expansion
X_ns_hermite4 = scipy.special.eval_hermitenorm(orders4,X_ns.values.reshape(-1, 1), out=None) # Hermite polynomials for X
df_X_ns_hermite4 = pd.DataFrame({'value':X_ns.values,'1st':X_ns_hermite4[:,0],'2nd':X_ns_hermite4[:,1],
'3rd':X_ns_hermite4[:,2],'4th':X_ns_hermite4[:,3]}) # make a new DataFrame from the vectors
df_X_ns_hermite4.head()
| value | 1st | 2nd | 3rd | 4th | |
|---|---|---|---|---|---|
| 0 | -2.026808 | -2.026808 | 3.107951 | -2.245605 | -4.772444 |
| 1 | -1.780464 | -1.780464 | 2.170053 | -0.302774 | -5.971082 |
| 2 | -1.534121 | -1.534121 | 1.353526 | 0.991769 | -5.582071 |
| 3 | -1.356312 | -1.356312 | 0.839582 | 1.573889 | -4.653429 |
| 4 | -1.213340 | -1.213340 | 0.472193 | 1.853749 | -3.665806 |
Note: I have omitted orders that had a higher degree of correlation for our dataset.
Let’s check the correlation between the Hermite predictor features. There is improvement.
hermite_corr_matrix = df_X_ns_hermite4.iloc[:,1:].corr() # calculate correlation matrix of Hermite basis expansion of X
plt.subplot(111)
plot_corr(hermite_corr_matrix,'Hermite Polynomial Correlation Matrix',1.0,0.1) # using our correlation matrix visualization function
plt.xlabel('Features'); plt.ylabel('Features')
plt.subplots_adjust(left=0.0, bottom=0.0, right=1.0, top=0.8, wspace=0.2, hspace=0.3); plt.show()
The pairwise linear correlation is quite low compared to the polynomial basis.

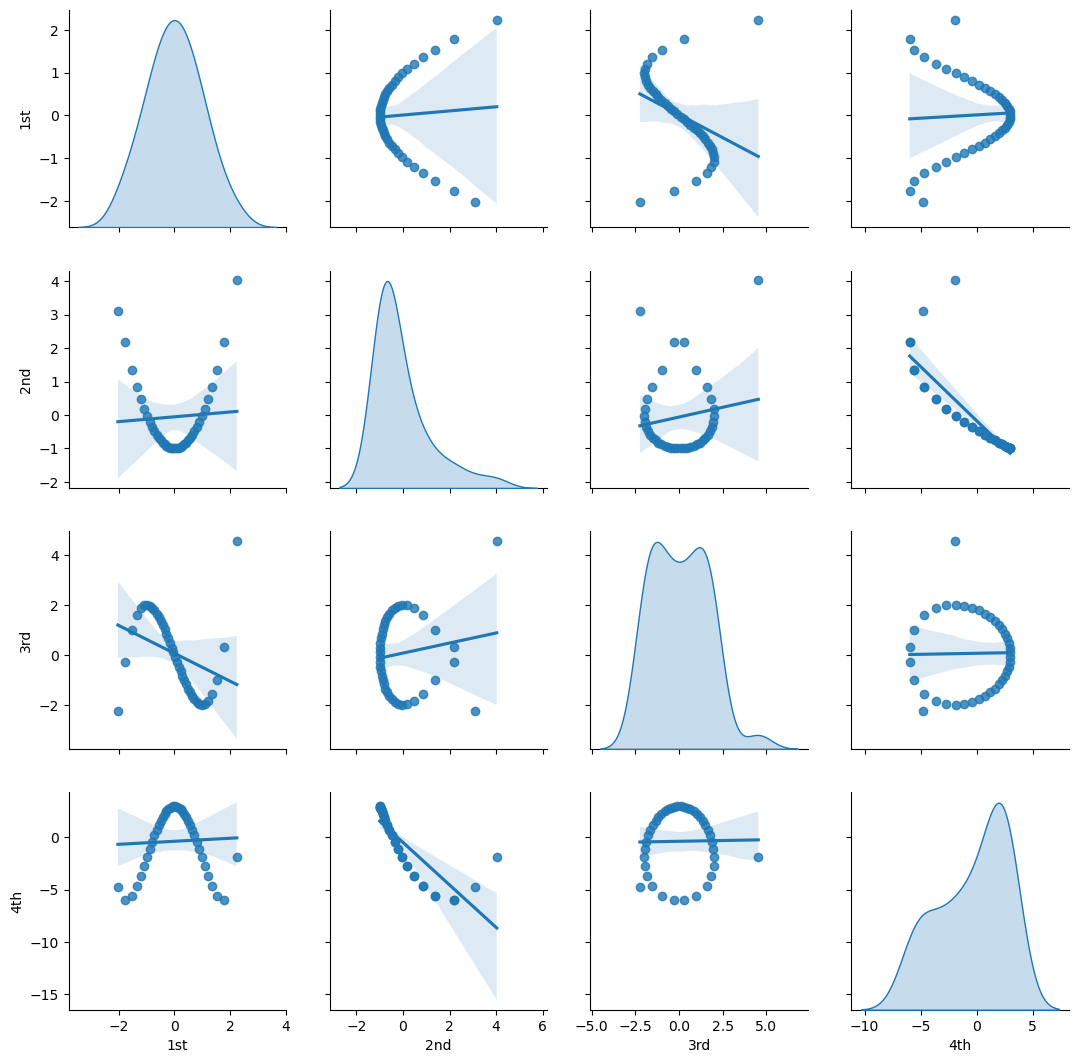

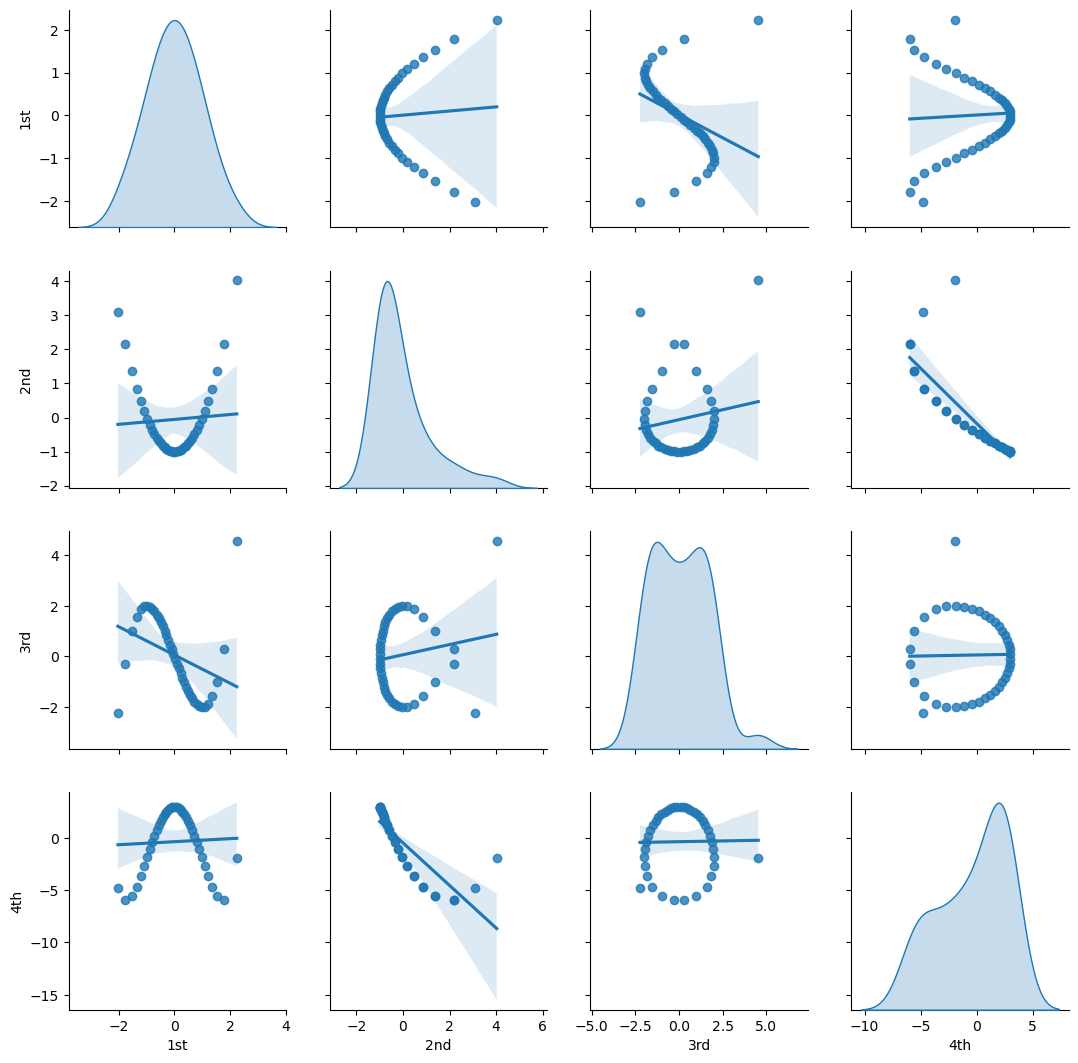

Let’s visualize the bivariate relationships between our Hermite basis orders.
sns.pairplot(df_X_ns_hermite4.iloc[:,1:],vars=['1st','2nd','3rd','4th'],markers='o', kind='reg',diag_kind='kde')
plt.subplots_adjust(left=0.0, bottom=0.0, right=1.0, top=1.0, wspace=0.2, hspace=0.2); plt.show()
We can check the arithmetic averages of all the Hermite basis expansions.
print('The means of each basis expansion, 1 - 4th order = ' + str(stats.describe(X_ns_hermite4)[2]) + '.')
The means of each basis expansion, 1 - 4th order = [ 0.00536486 -0.0541238 0.05726848 -0.36447919].
Let’s visualize Hermite polynomials over the range of the standardized depth.
plt.subplot(111) # plot Hermite polynomials
plt.plot(X_ns_values,scipy.special.eval_hermite(orders4,X_ns_values.reshape(-1, 1))[:,0],label='1st',color = 'blue')
plt.plot(X_ns_values,scipy.special.eval_hermite(orders4,X_ns_values.reshape(-1, 1))[:,1],label='2nd',color = 'green')
plt.plot(X_ns_values,scipy.special.eval_hermite(orders4,X_ns_values.reshape(-1, 1))[:,2],label='3rd',color = 'red')
plt.plot(X_ns_values,scipy.special.eval_hermite(orders4,X_ns_values.reshape(-1, 1))[:,3],label='4th',color = 'orange')
plt.title('Hermite Polynomial Basis Expansion of ' + Xname[0])
plt.xlabel('NS: ' + Xname[0] + ' (' + Xunit[0] + ')')
plt.ylabel('h[ NS: ' + Xname[0] + ' (' + Xunit[0] + ') ]')
plt.legend(); plt.xlim(-3,3); add_grid()
plt.subplots_adjust(left=0.0, bottom=0.0, right=2.0, top=1.0, wspace=0.2, hspace=0.2); plt.show()
Now let’s fit our Hermite basis regression model.
lin_herm4 = LinearRegression() # instantiate model
lin_herm4.fit(df_X_ns_hermite4.iloc[:,1:], y_ns) # fit Hermite polynomials
hb1,hb2,hb3,hb4 = np.round(lin_herm4.coef_,3) # retrieve the model parameters
hb0 = lin_herm4.intercept_
plt.subplot(111) # plot data and model
plt.plot(X_ns_values, lin_herm4.predict(scipy.special.eval_hermitenorm(orders4,X_ns_values.reshape(-1, 1), out=None)),
label='4th order',color = 'red')
plt.scatter(X_ns,y_ns,marker='o',label='data',color = 'darkorange',alpha = 0.8,edgecolor = 'black')
plt.title('Hermite Polynomial Regression Model, Regression of NS ' + yname[0] + ' on NS ' + Xname[0])
plt.xlabel('NS: ' + Xname[0] + ' (' + Xunit[0] + ')')
plt.ylabel('NS: ' + yname[0] + ' (' + yunit[0] + ')')
plt.legend(); add_grid(); plt.xlim([-3.0,3.0]); plt.ylim([ymin,ymax])
plt.annotate('Hermite Polynomial Regression Model',[-2.8,2.6])
plt.annotate(r' $\beta_4$ :' + str(round(hb4,3)),[-2.8,2.1])
plt.annotate(r' $\beta_3$ :' + str(round(hb3,3)),[-2.8,1.7])
plt.annotate(r' $\beta_2$ :' + str(round(hb2,3)),[-2.8,1.3])
plt.annotate(r' $\beta_1$ :' + str(round(hb1,3)),[-2.8,0.9])
plt.annotate(r' $\beta_0$ :' + str(round(hb0,2)),[-2.8,0.5])
plt.annotate(r'$N[\phi] = \beta_4 \times N[z]^4 + \beta_3 \times N[z]^3 + \beta_2 \times N[z]^2 + \beta_1 \times N[z] + \beta_0$',[-1.0,-2.0])
plt.annotate(r'$N[\phi] = $' + str(hb4) + r' $\times N[z]^4 +$ ' + str(hb3) + r' $\times N[z]^3 +$ ' + str(hb2) + r' $\times N[z]^2 +$ ' +
str(hb1) + r' $\times N[z]$ + ' + str(round(hb0,2)),[-1.0,-2.5])
plt.subplots_adjust(left=0.0, bottom=0.0, right=1.4, top=0.8, wspace=0.2, hspace=0.2); plt.show()
Since we have less correlation between the expanded basis features we can check out the model coefficients and interpret the unique importance of each order.
Orthogonal Polynomials#
Let’s try the orthogonal polynomial basis expansion reimplemented in Python by Dave Moore from the poly() function in R.
the functions below for fit and predict are directly from Dave’s blog
note during the fit to the training data the norm2 and alpha model parameters are calcluated
these parameters must be passed to each subsequent predict to ensure the results are consistent
# functions taken (without modification) from http://davmre.github.io/blog/python/2013/12/15/orthogonal_poly
# appreciation to Dave Moore for the great blog post on titled 'Orthogonal polynomial regression in Python'
# functions are Dave's reimplementation of poly() from R
def ortho_poly_fit(x, degree = 1):
n = degree + 1
x = np.asarray(x).flatten()
if(degree >= len(np.unique(x))):
stop("'degree' must be less than number of unique points")
xbar = np.mean(x)
x = x - xbar
X = np.fliplr(np.vander(x, n))
q,r = np.linalg.qr(X)
z = np.diag(np.diag(r))
raw = np.dot(q, z)
norm2 = np.sum(raw**2, axis=0)
alpha = (np.sum((raw**2)*np.reshape(x,(-1,1)), axis=0)/norm2 + xbar)[:degree]
Z = raw / np.sqrt(norm2)
return Z, norm2, alpha
def ortho_poly_predict(x, alpha, norm2, degree = 1):
x = np.asarray(x).flatten()
n = degree + 1
Z = np.empty((len(x), n))
Z[:,0] = 1
if degree > 0:
Z[:, 1] = x - alpha[0]
if degree > 1:
for i in np.arange(1,degree):
Z[:, i+1] = (x - alpha[i]) * Z[:, i] - (norm2[i] / norm2[i-1]) * Z[:, i-1]
Z /= np.sqrt(norm2)
return Z
Let’s give it a try and perform orthogonal polynomial expansion of our standard normal transformed depth
X_ns_ortho4, norm2, alpha = ortho_poly_fit(X_ns.values.reshape(-1, 1), degree = 4) # orthogonal polynomial expansion
df_X_ns_ortho4 = pd.DataFrame({'value':X_ns.values,'1st':X_ns_ortho4[:,1],'2nd':X_ns_ortho4[:,2],'3rd':X_ns_ortho4[:,3],
'4th':X_ns_ortho4[:,4]}) # make a new DataFrame from the vectors
df_X_ns_ortho4.head()
| value | 1st | 2nd | 3rd | 4th | |
|---|---|---|---|---|---|
| 0 | -2.026808 | -0.330385 | 0.440404 | -0.460160 | 0.420374 |
| 1 | -1.780464 | -0.290335 | 0.313201 | -0.207862 | 0.021278 |
| 2 | -1.534121 | -0.250285 | 0.202153 | -0.029761 | -0.172968 |
| 3 | -1.356312 | -0.221377 | 0.132038 | 0.058235 | -0.220834 |
| 4 | -1.213340 | -0.198133 | 0.081765 | 0.107183 | -0.219084 |
Let’s check the correlation between the orthogonal polynomial predictor features. I’m impressed! The between basis feature order correlations are all zero!
ortho_corr_matrix = df_X_ns_ortho4.iloc[:,1:].corr() # calculate the correlation matrix
plt.subplot(111)
plot_corr(ortho_corr_matrix,'Orthogonal Polynomial Expansion Correlation Matrix',1.0,0.1) # using our correlation matrix visualization function
plt.xlabel('Features'); plt.ylabel('Features')
plt.subplots_adjust(left=0.0, bottom=0.0, right=1.0, top=0.8, wspace=0.2, hspace=0.3); plt.show()

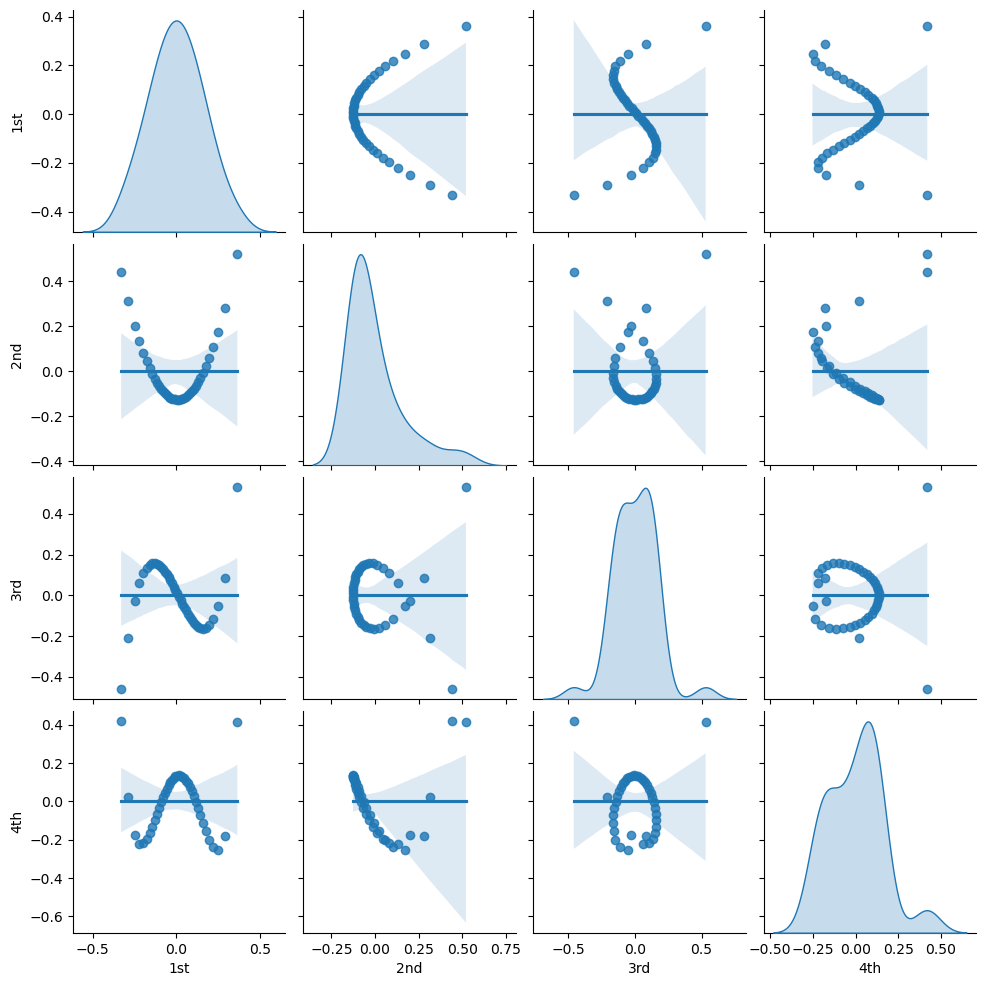

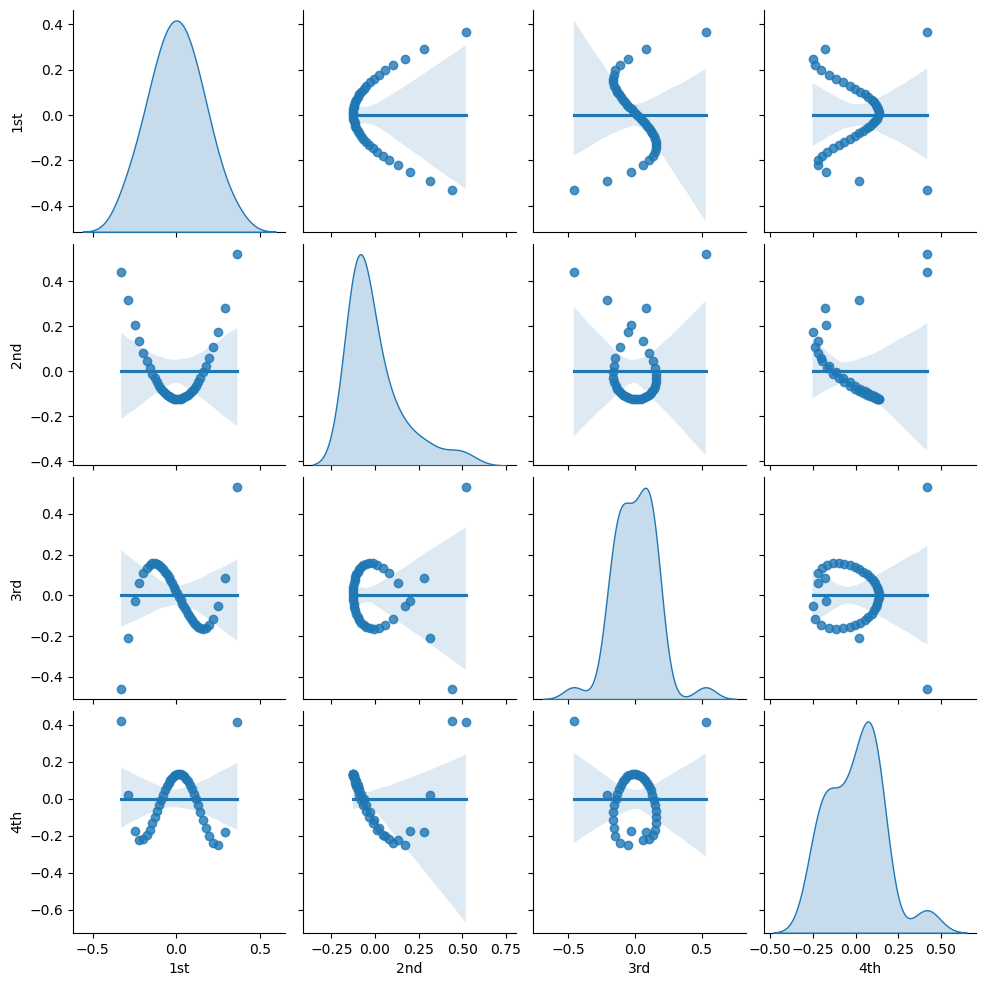

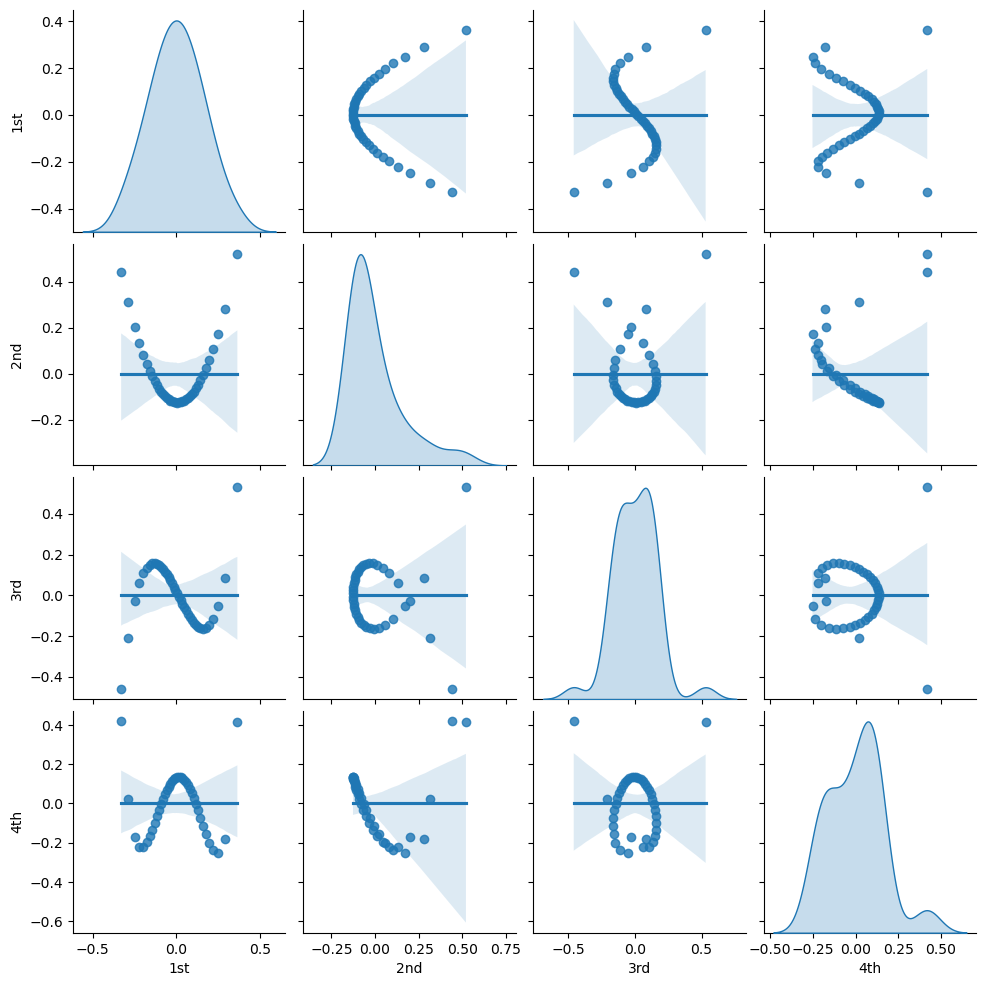

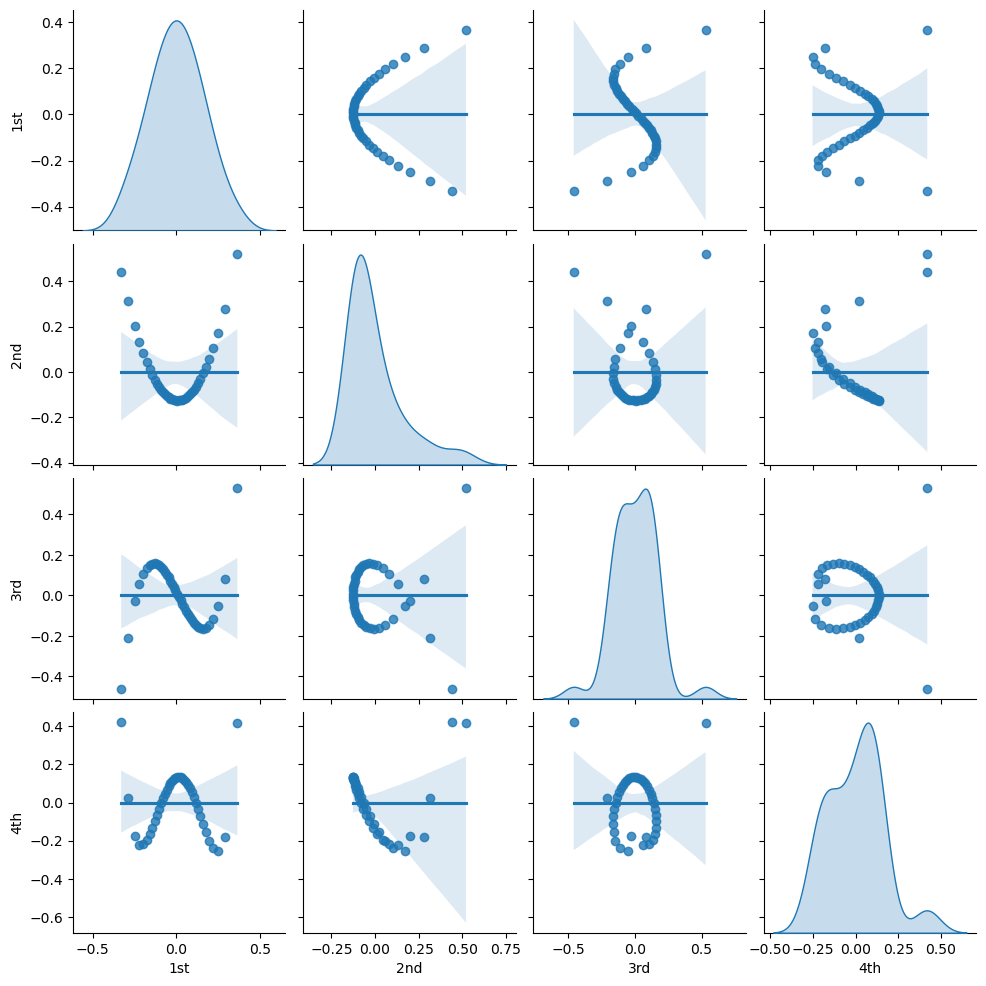

Let’s visualize the bivariate relationships between our orthogonal polynomial basis orders.
sns.pairplot(df_X_ns_ortho4.iloc[:,1:],vars=['1st','2nd','3rd','4th'],markers='o',kind='reg',diag_kind='kde')
<seaborn.axisgrid.PairGrid at 0x26627b2de50>
Let’s visualize orthogonal polynomial basis orders over the range of the standardized depth.
ortho_poly_ns_values = ortho_poly_predict(X_ns_values.reshape(-1, 1), alpha, norm2, degree = 4)
plt.subplot(111)
plt.plot(X_ns_values, ortho_poly_ns_values[:,0], label='0th', color = 'black')
plt.plot(X_ns_values, ortho_poly_ns_values[:,1], label='1st', color = 'blue')
plt.plot(X_ns_values, ortho_poly_ns_values[:,2], label='2nd', color = 'green')
plt.plot(X_ns_values, ortho_poly_ns_values[:,3], label='3rd', color = 'red')
plt.plot(X_ns_values, ortho_poly_ns_values[:,4], label='4th', color = 'orange')
plt.title('Orthogonal Polynomial Basis Expansion of ' + Xname[0])
plt.xlabel('NS: ' + Xname[0] + ' (' + Xunit[0] + ')')
plt.ylabel('h[ NS: ' + Xname[0] + ' (' + Xunit[0] + ') ]')
plt.legend(); plt.xlim(-3,3); add_grid()
plt.subplots_adjust(left=0.0, bottom=0.0, right=2.0, top=1.0, wspace=0.2, hspace=0.2); plt.show()
Finally let’s fit our orthogonal polynomial basis expansion regression model.
lin_ortho4 = LinearRegression() # instantiate model
lin_ortho4.fit(df_X_ns_ortho4.iloc[:,1:], y_ns) # fit Hermite polynomials
ob1,ob2,ob3,ob4 = np.round(lin_ortho4.coef_,3) # retrieve the model parameters
ob0 = lin_ortho4.intercept_
plt.subplot(111)
plt.plot(X_ns_values,lin_ortho4.predict(ortho_poly_ns_values[:,1:]),label='orthogonal polynomial',color = 'red')
plt.scatter(X_ns,y_ns,marker='o',label='data',color = 'darkorange',alpha = 0.8,edgecolor = 'black')
plt.title('Orthogonal Polynomial Regression Model, Regression of NS ' + yname[0] + ' on NS ' + Xname[0])
plt.xlabel('NS: ' + Xname[0] + ' (' + Xunit[0] + ')')
plt.ylabel('NS: ' + yname[0] + ' (' + yunit[0] + ')')
plt.legend(); add_grid(); plt.xlim([-3.0,3.0]); plt.ylim([ymin,ymax])
plt.annotate('Orthogonal Polynomial Regression Model',[-2.8,2.6])
plt.annotate(r' $\beta_4$ :' + str(round(ob4,3)),[-2.8,2.1])
plt.annotate(r' $\beta_3$ :' + str(round(ob3,3)),[-2.8,1.7])
plt.annotate(r' $\beta_2$ :' + str(round(ob2,3)),[-2.8,1.3])
plt.annotate(r' $\beta_1$ :' + str(round(ob1,3)),[-2.8,0.9])
plt.annotate(r' $\beta_0$ :' + str(round(ob0,2)),[-2.8,0.5])
plt.annotate(r'$N[\phi] = \beta_4 \times N[z]^4 + \beta_3 \times N[z]^3 + \beta_2 \times N[z]^2 + \beta_1 \times N[z] + \beta_0$',[-1.0,-2.0])
plt.annotate(r'$N[\phi] = $' + str(ob4) + r' $\times N[z]^4 +$ ' + str(ob3) + r' $\times N[z]^3 +$ ' + str(ob2) + r' $\times N[z]^2 +$ ' +
str(ob1) + r' $\times N[z]$ + ' + str(round(ob0,2)),[-1.0,-2.5])
plt.subplots_adjust(left=0.0, bottom=0.0, right=1.4, top=0.8, wspace=0.2, hspace=0.2); plt.show()
Polynomial Regression in scikit-learn with Pipelines#
The need to first perform basis expansion and then train the resulting (after basis transformations) linear model may seem a bit complicated.
one solution is to use the Pipeline object from scikit-learn. Here are some highlights on Pipelines.
Machine learning workflows can be complicated, with various steps:
data preparation, feature engineering transformations
model parameter fitting
model hyperparameter tuning
modeling method selection
searching over a large combinatorial of hyperparameters
training and testing model runs
Pipelines are a scikit-learn class that allows for the encapsulation of a sequence of data preparation and modeling steps
then we can treat the pipeline as an object in our much condensed workflow
The pipeline class allows us to:
improve code readability and to keep everything straight
avoid common workflow problems like data leakage, testing data informing model parameter training
abstract common machine learning modeling and focus on building the best model possible
The fundamental philosophy is to treat machine learning as a combinatorial search to find the best model (AutoML)
order=4 # set the polynomial order
polyreg_pipe=make_pipeline(PolynomialFeatures(order),LinearRegression()) # make the modeling pipeline
polyreg_pipe.fit(X_ns.values.reshape(-1, 1), y_ns) # fit the model to the data
y_hat = polyreg_pipe.predict(X_ns_values.reshape(-1, 1)) # predict with the modeling pipeline
poly_reg_model = polyreg_pipe.named_steps['linearregression'] # retrieve the model from the pipeline
pb0a,pb1,pb2,pb3,pb4 = np.round(poly_reg_model.coef_,3) # retrieve the model parameters
pb0b = poly_reg_model.intercept_
pb0 = pb0a + pb0b
plt.subplot(111) # plot the data and model
plt.plot(X_ns_values,y_hat, label='4th order',color = 'red')
plt.scatter(X_ns,y_ns,marker='o',label='data',color = 'darkorange',alpha = 0.8,edgecolor = 'black')
plt.title(str(order) + r'$^{th}$ Polynomial Regression Model with Pipelines, Regression of NS ' + yname[0] + ' on NS ' + Xname[0])
plt.xlabel('NS: ' + Xname[0] + ' (' + Xunit[0] + ')')
plt.ylabel('NS: ' + yname[0] + ' (' + yunit[0] + ')')
plt.legend(); add_grid(); plt.xlim([-3.0,3.0]); plt.ylim([ymin,ymax])
plt.annotate('Orthogonal Polynomial Regression Model',[-2.8,2.6])
plt.annotate(r' $\beta_4$ :' + str(round(pb4,3)),[-2.8,2.1])
plt.annotate(r' $\beta_3$ :' + str(round(pb3,3)),[-2.8,1.7])
plt.annotate(r' $\beta_2$ :' + str(round(pb2,3)),[-2.8,1.3])
plt.annotate(r' $\beta_1$ :' + str(round(pb1,3)),[-2.8,0.9])
plt.annotate(r' $\beta_0$ :' + str(round(pb0,2)),[-2.8,0.5])
plt.annotate(r'$N[\phi] = \beta_4 \times N[z]^4 + \beta_3 \times N[z]^3 + \beta_2 \times N[z]^2 + \beta_1 \times N[z] + \beta_0$',[-1.0,-2.0])
plt.annotate(r'$N[\phi] = $' + str(pb4) + r' $\times N[z]^4 +$ ' + str(pb3) + r' $\times N[z]^3 +$ ' + str(pb2) + r' $\times N[z]^2 +$ ' +
str(pb1) + r' $\times N[z]$ + ' + str(round(pb0,2)),[-1.0,-2.5])
plt.subplots_adjust(left=0.0, bottom=0.0, right=2.0, top=1.0, wspace=0.2, hspace=0.2); plt.show()
Want to Work Together?#
I hope this content is helpful to those that want to learn more about subsurface modeling, data analytics and machine learning. Students and working professionals are welcome to participate.
Want to invite me to visit your company for training, mentoring, project review, workflow design and / or consulting? I’d be happy to drop by and work with you!
Interested in partnering, supporting my graduate student research or my Subsurface Data Analytics and Machine Learning consortium (co-PI is Professor John Foster)? My research combines data analytics, stochastic modeling and machine learning theory with practice to develop novel methods and workflows to add value. We are solving challenging subsurface problems!
I can be reached at mpyrcz@austin.utexas.edu.
I’m always happy to discuss,
Michael
Michael Pyrcz, Ph.D., P.Eng. Professor, Cockrell School of Engineering and The Jackson School of Geosciences, The University of Texas at Austin
Comments#
Polynomial regression is a flexible method for modeling nonlinear data and it introduces the concept of basis expansion.
I hope you found this chapter helpful. Much more could be done and discussed, I have many more resources. Check out my shared resource inventory.
Michael
