Motivation#
Activation functions are a critical component of any neural network.
we apply activation functions and their associated derivatives throughout the deep learning chapters
So let’s visualize the common activation functions and their derrivatives.
Activation Functions#
In neural networks, an activation function is a transformation of the linear combination of the weighted node inputs plus the node bias term applied in a network node. In general activation is nonlinear to,
introduce non-linear properties to the network
prevent the network from collapsing
Without the nonlinear activation function we would have linear regression, i.e., the entire system collapses to a linear combination of the inputs!
Do demonstrate this, let’s take our example network and remove the activation functions, or assuming a linear transformation,
Now we can calculate the prediction ignoring activation, since it is identity or a linear scaling as,
Now we can group the like terms,
and finally, we can group the summed model parameters and replace them with recognizable coefficients,
et voilà! We have linear regression, an artificial neural network without activation collapses to linear regression.
Now that we have demonstrated the necessity of nonlinear activation, here’s some common activation functions,
Note the notation in the figure above,
for the activation functions, the x-axis is the pre-activation value, \(x_{in}\), and the y-axis is the post-activation values, \(x_{out}\).
for the activation function derivatives, the x-axis is the post-activation value, \(x_{out}\), and the y-axis is the associated activation function derrivative.
The derivative is defined and derived like this to simplify the back propagation process, i.e., use the output from a neural network node to back-propagate through the node!
Let’s list, define some activation functions, here are the equations and some comments for each,
Sigmoid - also known as logistic has the following expression and derivative.
\(\quad\) Note, very efficient derivative, but not zero-centered, which can slow down training due to zigzagging gradients, and suffers from vanishing gradients when input values are far from 0 (saturates near 0 or 1).
Tanh – hyperbolic tangent has the following expression and derivative.
\(\quad\) Note, Tanh suffers from vanishing gradients for large input values, like sigmoid activation, but generally performs better than sigmoid in practice due to its centered output.
ReLU – rectified linear units has the following expression and derivative.
\(\quad\) Note, ReLU encourages sparse activation, i.e., only some neurons are on, but can suffer from the dying ReLU problem if too many activations are 0.0.
Linear – linear activation simply returns the input
\(\quad\) Note, linear activation is only used in output layers for regression, it does not help capture non-linear patterns and if only linear activation is applied the network collapses to linear regression.
Binary Step – outputs 0 or 1 depending on input sign
\(\quad\) Note, binary step is non-differentiable and not suitable for gradient descent, but was historically used in perceptrons.
Selecting an Activation Function#
How do we select our activation functions? Considerations these criteria for selecting activation functions,
Nonlinear – required to impose nonlinearity into the prediction model (e.g., sigmoid, tanh and ReLU are nonlinear).
Range – finite for more stability gradient-based learning, infinite for more efficient training, but requires a slower learning rate (e.g., sigmoid \([0,\infty]\), tanh \([-1,1]\) and ReLU \([0,\infty]\)).
Continuously Differentiable – required for stable gradient-based optimization (e.g., sigmoid, tanh and ReLU \(\ne 0.0\))
Fast Calculation of Derivative - the derivative calculation has low calculation complexity for efficient training (e.g., sigmoid and ReLU)
Smooth functions with Monotonic Derivative – may generalize better (e.g., sigmoid, tanh and ReLU)
Monotonic – guaranteed convexity of error surface of a single layer model, global minimum for loss function (e.g., sigmoid, tanh and ReLU)
Approximates Identity at the Origin, \((𝑓(0) = 0)\) – learns efficiently with the weights initialized as small random values (e.g., ReLU and tanh)
Here’s a table summarizing these criteria for the discussed activation functions,
Property |
Sigmoid |
Tanh |
ReLU |
Linear |
Binary Step |
|---|---|---|---|---|---|
Nonlinear |
✅ |
✅ |
✅ |
❌ |
✅ |
Range |
(0, 1) |
(–1, 1) |
[0, ∞) |
(–∞, ∞) |
{0, 1} |
Continuously Differentiable |
✅ |
✅ |
❌ (not at 0) |
✅ |
❌ (discontinuous) |
Fast Derivative Calculation |
✅ |
⚠️ (slower) |
✅ |
✅ |
✅ (discrete case) |
Smooth with Monotonic Derivative |
✅ |
✅ |
⚠️ (not smooth) |
✅ |
❌ |
Monotonic Function |
✅ |
✅ |
✅ |
✅ |
✅ |
Approximates Identity at Origin |
✅ (≈0.5 slope) |
✅ (slope ≈ 1) |
✅ (slope = 1) |
✅ |
❌ |
Below we will visualize the activation functions and their associated derivatives.
Import Required Packages#
We will also need some standard packages. These should have been installed with Anaconda 3.
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from matplotlib.ticker import (MultipleLocator, AutoMinorLocator, AutoLocator) # control of axes ticks
plt.rc('axes', axisbelow=True) # set axes and grids in the background for all plots
If you get a package import error, you may have to first install some of these packages. This can usually be accomplished by opening up a command window on Windows and then typing ‘python -m pip install [package-name]’. More assistance is available with the respective package docs.
Declare Functions#
I just added a convenience function for adding major and minor gridlines.
def add_grid():
plt.gca().grid(True, which='major',linewidth = 1.0); plt.gca().grid(True, which='minor',linewidth = 0.2) # add y grids
plt.gca().tick_params(which='major',length=7); plt.gca().tick_params(which='minor', length=4)
plt.gca().xaxis.set_minor_locator(AutoMinorLocator()); plt.gca().yaxis.set_minor_locator(AutoMinorLocator()) # turn on minor ticks
Activation Functions#

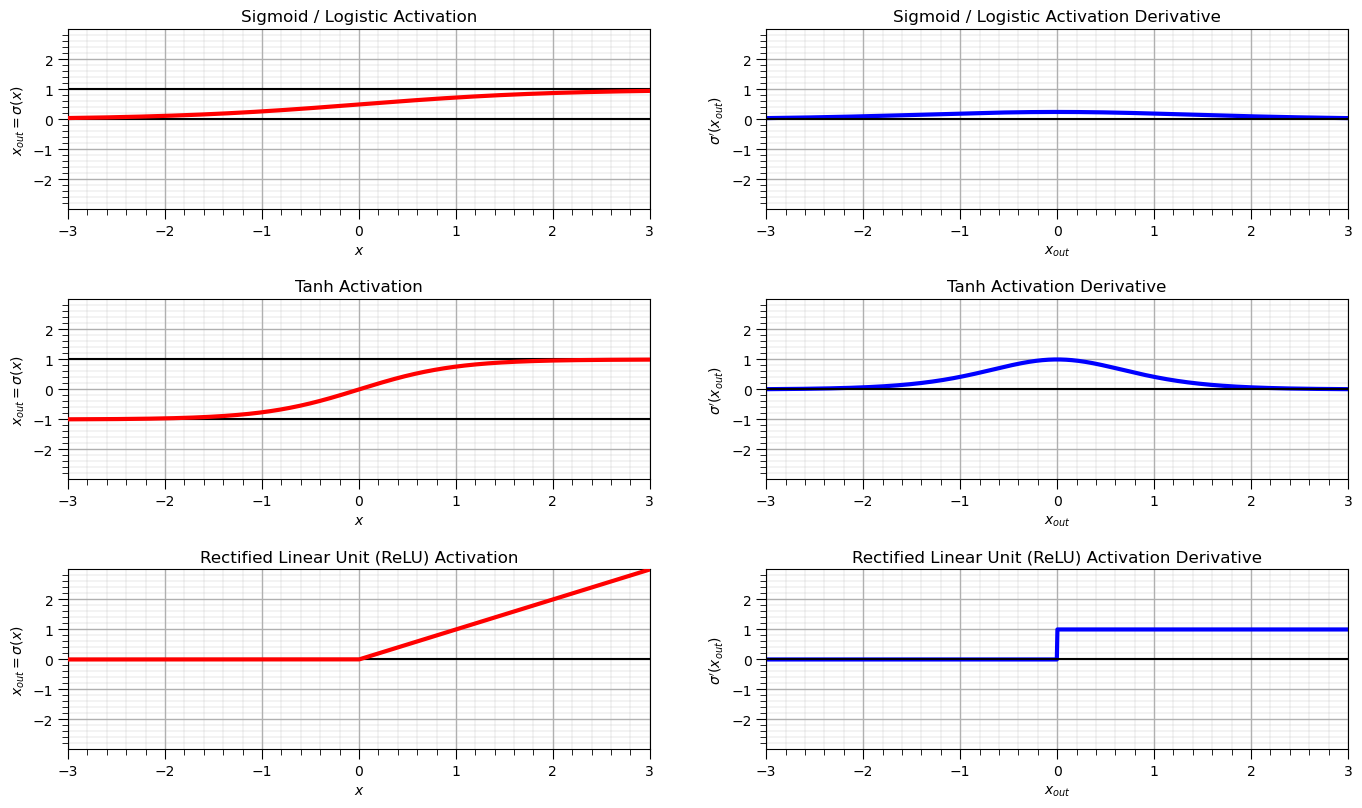

The following calculations and plots provide the functions and derivatives for the following activation functions:
Sigmoid / Logistic
Tanh
ReLU
x = np.linspace(-3,3,1000)
y_sigmoid = 1.0/(1.0+np.exp(-1*x))
dy_sigmoid = y_sigmoid*(1.0-y_sigmoid)
y_tanh = (np.exp(x) - np.exp(-1*x))/(np.exp(x) + np.exp(-1*x))
dy_tanh = 1 - (np.exp(x) - np.exp(-1*x))**2.0/(np.exp(x) + np.exp(-1*x))**2.0
y_relu = np.clip(x, a_min = 0,a_max = None)
dy_relu = np.where(y_relu == 0,0,1.0)
major_ticks = np.array([-2,-1,0,1,2])
plt.subplot(321)
plt.plot(x,y_sigmoid,color='red',lw=3,label=r'$\alpha(x)$',zorder=10)
plt.gca().set_yticks(major_ticks); plt.title('Sigmoid / Logistic Activation'); plt.xlabel(r'$x$'); plt.ylabel(r'$x_{out} = \sigma(x)$')
plt.plot([-3,3],[0,0],color='black',zorder=1); plt.plot([-3,3],[1,1],color='black',zorder=1)
add_grid(); plt.xlim([-3,3]); plt.ylim([-3,3])
plt.subplot(322)
plt.plot(x,dy_sigmoid,color='blue',lw=3,label=r'$\frac{\partial \alpha}{\partial x}(x)$',zorder=1)
plt.gca().set_yticks(major_ticks); plt.title('Sigmoid / Logistic Activation Derivative')
plt.xlabel(r'$x_{out}$'); plt.ylabel(r'$\sigma^{\prime} \left(x_{out} \right)$')
plt.plot([-3,3],[0,0],color='black',zorder=1)
add_grid(); plt.xlim([-3,3]); plt.ylim([-3,3])
plt.subplot(323)
plt.plot(x,y_tanh,color='red',lw=3,label=r'$\alpha(x)$',zorder=10)
plt.gca().set_yticks(major_ticks); plt.title('Tanh Activation'); plt.xlabel(r'$x$'); plt.ylabel(r'$x_{out} = \sigma(x)$')
plt.plot([-3,3],[-1,-1],color='black',zorder=1); plt.plot([-3,3],[1,1],color='black',zorder=1)
add_grid(); plt.xlim([-3,3]); plt.ylim([-3,3])
plt.subplot(324)
plt.plot(x,dy_tanh,color='blue',lw=3,label=r'$\frac{\partial \alpha}{\partial x_{out}}(x_{out})$',zorder=1)
plt.gca().set_yticks(major_ticks); plt.title('Tanh Activation Derivative'); plt.xlabel(r'$x_{out}$')
plt.ylabel(r'$\sigma^{\prime} \left(x_{out} \right)$')
plt.plot([-3,3],[0,0],color='black',zorder=1)
add_grid(); plt.xlim([-3,3]); plt.ylim([-3,3])
plt.subplot(325)
plt.plot(x,y_relu,color='red',lw=3,label=r'$\alpha(x)$',zorder=10); plt.xlabel(r'$x$'); plt.ylabel(r'$x_{out} = \sigma(x)$')
plt.gca().set_yticks(major_ticks); plt.title('Rectified Linear Unit (ReLU) Activation')
plt.plot([-3,3],[0,0],color='black',zorder=1)
add_grid(); plt.xlim([-3,3]); plt.ylim([-3,3])
plt.subplot(326)
plt.plot(x,dy_relu,color='blue',lw=3,label=r'$\frac{\partial \alpha}{\partial x_{out}}(x_{out})$',zorder=1)
plt.gca().set_yticks(major_ticks); plt.title('Rectified Linear Unit (ReLU) Activation Derivative'); plt.xlabel(r'$x_{out}$')
plt.ylabel(r'$\sigma^{\prime} \left(x_{out} \right)$')
plt.plot([-3,3],[0,0],color='black',zorder=1)
add_grid(); plt.xlim([-3,3]); plt.ylim([-3,3])
plt.subplots_adjust(left=0.0, bottom=0.0, right=2.0, top=1.5, wspace=0.2, hspace=0.5); plt.show()
Other Loss Functions#

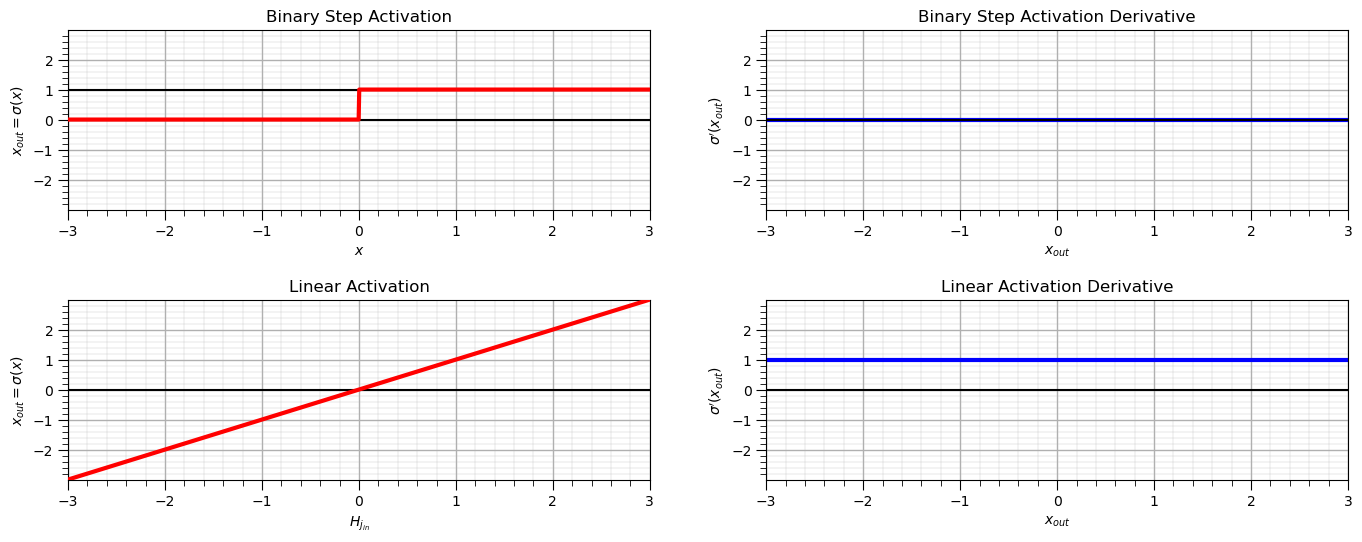

The following calculations and plots provide the functions and derivatives for the following activation functions:

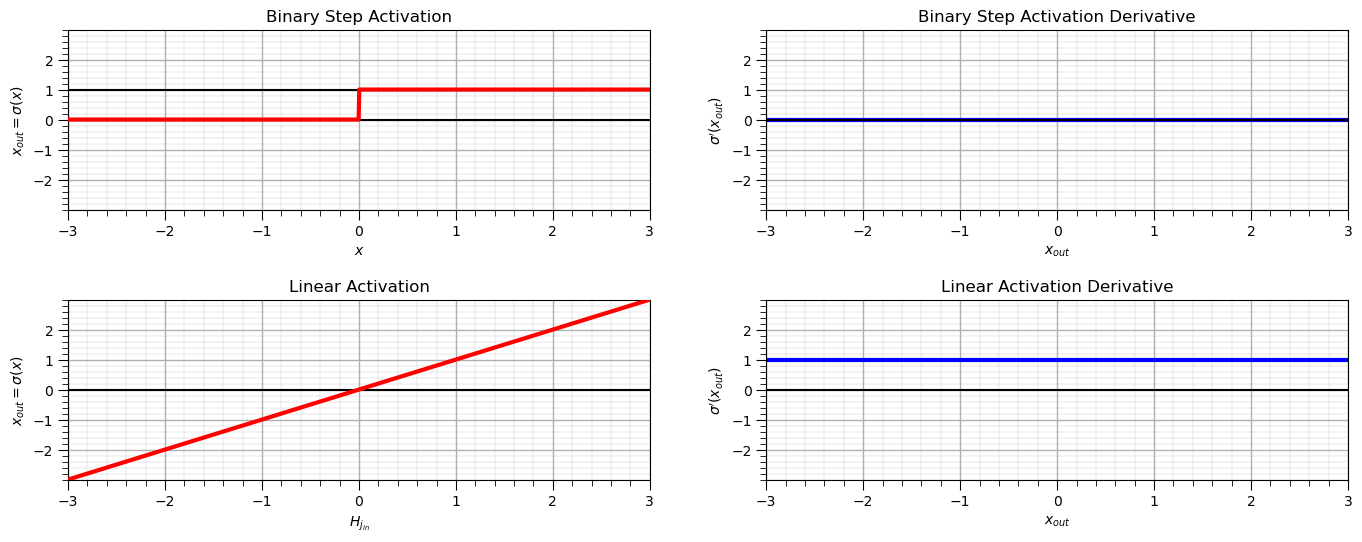

Binary Step
x = np.linspace(-3,3,1000)
y_binary = np.where(x <= 0,0.0,1.0)
dy_binary = np.zeros((len(y_binary)))
y_linear = np.copy(x)
dy_linear = np.ones((len(y_binary)))
major_ticks = np.array([-2,-1,0,1,2])
plt.subplot(321)
plt.plot(x,y_binary,color='red',lw=3,label=r'$\alpha(x)$',zorder=10)
plt.gca().set_yticks(major_ticks); plt.title('Binary Step Activation'); plt.xlabel(r'$x$'); plt.ylabel(r'$x_{out} = \sigma(x)$')
plt.plot([-3,3],[0,0],color='black',zorder=1); plt.plot([-3,3],[1,1],color='black',zorder=1)
add_grid(); plt.xlim([-3,3]); plt.ylim([-3,3])
plt.subplot(322)
plt.plot(x,dy_binary,color='blue',lw=3,label=r'$\frac{\partial \alpha}{\partial x_{out}}(x_{out})$',zorder=1)
plt.gca().set_yticks(major_ticks); plt.title('Binary Step Activation Derivative'); plt.xlabel(r'$x_{out}$')
plt.ylabel(r'$\sigma^{\prime} \left(x_{out} \right)$')
plt.plot([-3,3],[0,0],color='black',zorder=1)
add_grid(); plt.xlim([-3,3]); plt.ylim([-3,3])
plt.subplot(323)
plt.plot(x,y_linear,color='red',lw=3,label=r'$\alpha(x)$',zorder=10)
plt.gca().set_yticks(major_ticks); plt.title('Linear Activation'); plt.xlabel(r'$H_{j_{in}}$'); plt.ylabel(r'$x_{out} = \sigma(x)$')
plt.plot([-3,3],[0,0],color='black',zorder=1)
add_grid(); plt.xlim([-3,3]); plt.ylim([-3,3])
plt.subplot(324)
plt.plot(x,dy_linear,color='blue',lw=3,label=r'$\frac{\partial \alpha}{\partial x_{out}}(x_{out})$',zorder=1)
plt.gca().set_yticks(major_ticks); plt.title('Linear Activation Derivative'); plt.xlabel(r'$x_{out}$')
plt.ylabel(r'$\sigma^{\prime} \left(x_{out} \right)$')
plt.plot([-3,3],[0,0],color='black',zorder=1)
add_grid(); plt.xlim([-3,3]); plt.ylim([-3,3])
plt.subplots_adjust(left=0.0, bottom=0.0, right=2.0, top=1.5, wspace=0.2, hspace=0.5); plt.show()
